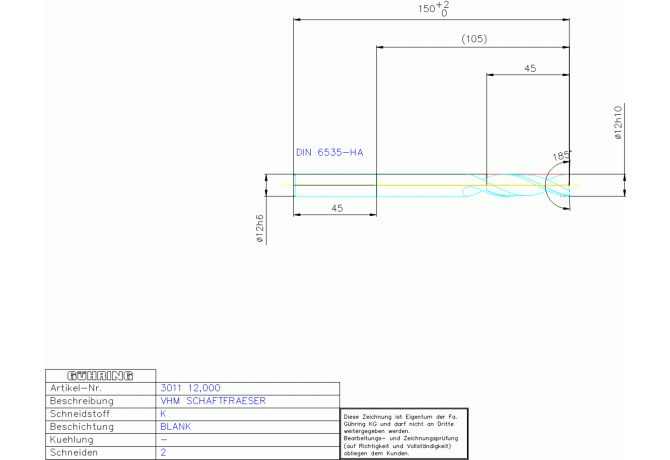

Главная Каталог продукции Toolunited 12 303-02 - Centre cutting end mill 3011 12.000

3011 12.000

Артикул: 9030110120000

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

45 mm

BMC Body material code

H - Solid carbide

CHW Corner chamfer width

0.1 mm

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

OHNE

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

12 mm

DCONMSLD Shank diameter lower limit

-0.011 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

ZYL01200105

F71 Number of corner designs

FamilyProducts

VHM BOHRNUTENFRAESER 2S WN RN ZYL HA

FHA Flute helix angle

30 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

71 mm

GAMF Rake angle radial

30 Degree

GRD2ND Standard designation of the grade 2nd application

VHM

GRDMFG Grade manufacturers designation

VHM

GRDPRIO Standard designation of the grade main application

HF-K

HAND Cutting direction

R - Right

ID Technical product number

9030110120000

Interface codes

J6 /

ISYC Subclass

303-02 - Centre cutting end mill

KCH Corner chamfer angle

45 Degree

LF Functional length

150 mm

LN Neck length

105 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0120

LOC-03 DCONMS Diameter

12 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01200105

LPR Protruding length

105 mm

LS Shank length

45 mm

MILTTY Mill tool type ISO

H - Slotting end mill (one or more indexable insert pro cutting edge) 90°

Name Identifying order number

3011 12.000

OAL Overall length

150 mm

STDNO Standard

TCDCONMS ISO-tolerance class shank diameter

Working process

FNB - Slotting

WT Weight of item

0.211 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count

ZNC Cutting edge centre count
