Главная Каталог продукции Toolunited 12 303-02 - Centre cutting end mill 19995 18.000

19995 18.000

Артикул: 9199950180000

В наличии

В корзину

Описание

Характеристики

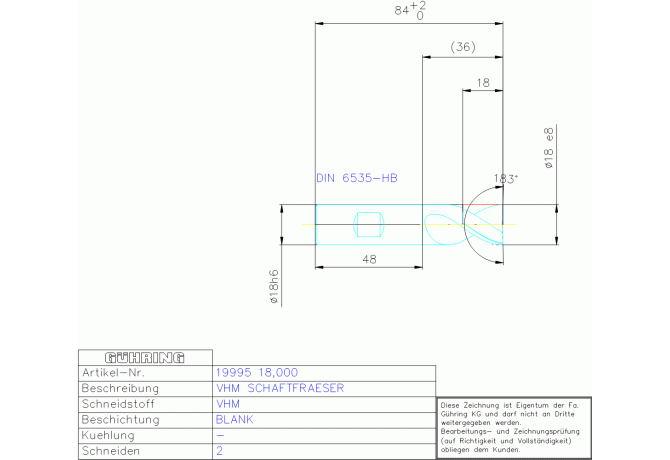

APMX Depth of cut maximum

18 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

OHNE

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

18 mm

DCONMSLD Shank diameter lower limit

-0.011 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

ZYL01801005

F71 Number of corner designs

FamilyProducts

VHM POWERMILL FRA 2S ALU WN RW KURZ HB

FHA Flute helix angle

35 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

80 mm

GAMF Rake angle radial

35 Degree

GRD2ND Standard designation of the grade 2nd application

VHM

GRDMFG Grade manufacturers designation

VHM

GRDPRIO Standard designation of the grade main application

HF-K

HAND Cutting direction

R - Right

ID Technical product number

9199950180000

Interface codes

J6 /

ISYC Subclass

303-02 - Centre cutting end mill

LF Functional length

60 mm

LN Neck length

36 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0180

LOC-03 DCONMS Diameter

18 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01801005

LPR Protruding length

36 mm

LS Shank length

48 mm

MILTTY Mill tool type ISO

H - Slotting end mill (one or more indexable insert pro cutting edge) 90°

Name Identifying order number

19995 18.000

OAL Overall length

84 mm

STDNO Standard

TCDCONMS ISO-tolerance class shank diameter

Working process

FNB - Slotting

WT Weight of item

0.286 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
