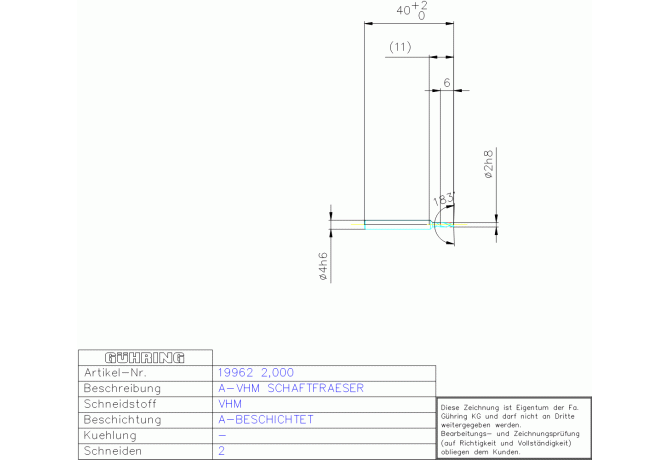

Главная Каталог продукции Toolunited 12 303-02 - Centre cutting end mill 19962 2.000

19962 2.000

Артикул: 9199620020000

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

6 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

TIALN

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

2 mm

DCONMSLD Shank diameter lower limit

-0.008 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

ZYL00400105

F71 Number of corner designs

FamilyProducts

VHM TIALN FRA 2S H8 WN KURZ RN 30°

FHA Flute helix angle

30 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

11.2 mm

GAMF Rake angle radial

30 Degree

GRD2ND Standard designation of the grade 2nd application

VHM

GRDMFG Grade manufacturers designation

VHM

GRDPRIO Standard designation of the grade main application

HC-K/P

HAND Cutting direction

R - Right

ID Technical product number

9199620020000

Interface codes

J6 /

ISYC Subclass

303-02 - Centre cutting end mill

LN Neck length

9.4 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0040

LOC-03 DCONMS Diameter

4 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00400105

LPR Protruding length

11 mm

LS Shank length

29.5 mm

MILTTY Mill tool type ISO

H - Slotting end mill (one or more indexable insert pro cutting edge) 90°

Name Identifying order number

19962 2.000

OAL Overall length

40 mm

STDNO Standard

TCDCONMS ISO-tolerance class shank diameter

Working process

FNB - Slotting

WT Weight of item

0.008 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
