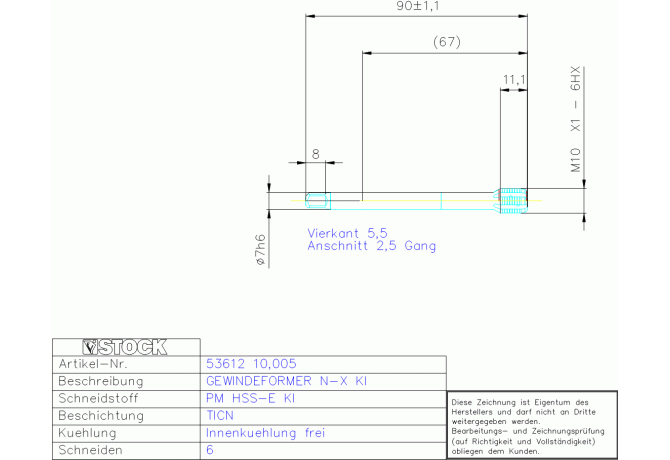

Главная Каталог продукции Toolunited 12 301-03 - Thread forming tap with offset shank 53612 10.005

53612 10.005

53612 10.005

Gühring

Артикул: 53612 10.005

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COATN Coating / Покрытие

TICN

COMPC Company code

GG - Gühring

CPDSC Cutting part design style code

1 - With oil groove & dirt groove

CRCLMFG Chip removal class mfg

UN

CXSC Coolant exit style code

2 - With Coolant exit, radial

DCONMSLD Shank diameter lower limit

-0.009 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/18/2024

DIN

ZYL00702115

DRVS Drive size

5.5 mm

FamilyProducts

PM HSSE C-GFO N-X KR DIN 374~ M10 X1

FHH Flute helix hand

N - Hand of helix neutral

GRD2ND Standard designation of the grade 2nd application

PM HSS-E

GRDMFG Grade manufacturers designation

PM HSS-E

GRDPRIO Standard designation of the grade main application

HSS-E-PM

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

301-03 - Thread forming tap with offset shank

LOC-03 CCFMS Connection code form

21

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0070

LOC-03 DCONMS Diameter

7 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00702115

LS Shank length

38 mm

Name Identifying order number

53612 10.005

NOF Flute count

6

OAL Overall length

90 mm

PLG Plug style

C - Kappa r 15°

STDNO Standard

DIN 374~

TCL Tap chamfer length

2.5 mm

TCTR Thread tolerance class

6HX

TD Thread diameter

10 mm

THFT Thread form type

MF

THL Thread cutting part length

11 mm

THOD Thread designation

MF10x1-6HX

TP Thread pitch

1 mm

TTPID Tap type identifier

4 - Forming tap

Working process

No working processes available

WT Weight of item

0.032 kg
