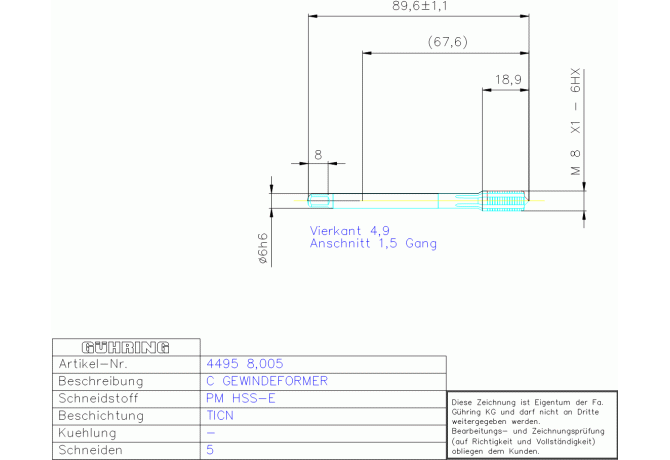

Главная Каталог продукции Toolunited 12 301-03 - Thread forming tap with offset shank 4495 8.005

4495 8.005

Артикул: 9044950080050

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

TICN

COMPC Company code

GG - Gühring

CPDSC Cutting part design style code

1 - With oil groove & dirt groove

CRCLDIN Tool application class

CRCLMFG Chip removal class mfg

CXSC Coolant exit style code

0 - Without coolant exit

DCONMSLD Shank diameter lower limit

-0.008 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

ZYL00602105

DRVS Drive size

4.9 mm

FamilyProducts

PM HSSE C-GFO DIN 374~ FORM E M 8 X1

FHH Flute helix hand

N - Hand of helix neutral

GRD2ND Standard designation of the grade 2nd application

PM HSS-E

GRDMFG Grade manufacturers designation

PM HSS-E

GRDPRIO Standard designation of the grade main application

HSS-E-PM

HAND Cutting direction

R - Right

ID Technical product number

9044950080050

Interface codes

J6 /

ISYC Subclass

301-03 - Thread forming tap with offset shank

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0060

LOC-03 DCONMS Diameter

6 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00602105

LS Shank length

38 mm

Name Identifying order number

4495 8.005

NOF Flute count

OAL Overall length

90 mm

PLCD Gate diameter

6.35 mm

PLG Plug style

E - Kappa r 23°

STDNO Standard

DIN374~

TCDCONMS ISO-tolerance class shank diameter

TCL Tap chamfer length

1.5 mm

TCTR Thread tolerance class

6HX

TD Thread diameter

8 mm

THFT Thread form type

THL Thread cutting part length

17 mm

THOD Thread designation

MF8x1-6HX

TP Thread pitch

1 mm

TTPID Tap type identifier

4 - Forming tap

Working process

No working processes available

WT Weight of item

0.026 kg
