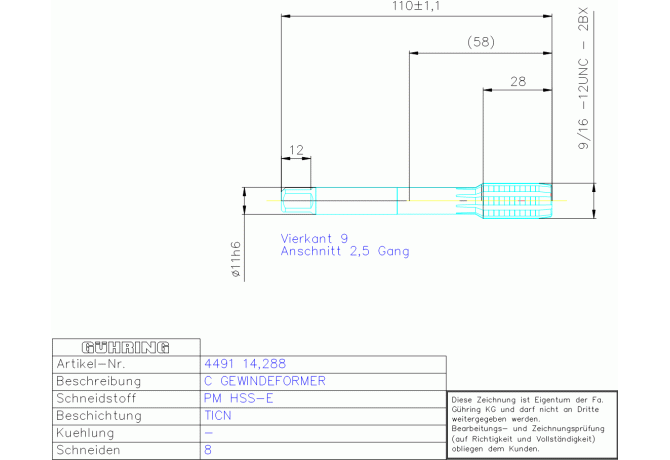

Главная Каталог продукции Toolunited 12 301-03 - Thread forming tap with offset shank 4491 14.288

4491 14.288

Артикул: 9044910142880

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

TICN

COMPC Company code

GG - Gühring

CPDSC Cutting part design style code

1 - With oil groove & dirt groove

CRCLDIN Chip removal class

CRCLMFG Chip removal class mfg

CXSC Coolant exit style code

0 - Without coolant exit

DCONMSLD Shank diameter lower limit

-0.011 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

ZYL01102105

DRVS Drive size

9 mm

FamilyProducts

PM HSSE C-GFO DIN 376~ FORM C 9/16-12

FHH Flute helix hand

N - Hand of helix neutral

GRD2ND Standard designation of the grade 2nd application

PM HSS-E

GRDMFG Grade manufacturers designation

PM HSS-E

GRDPRIO Standard designation of the grade main application

HSS-E-PM

HAND Cutting direction

R - Right

ID Technical product number

9044910142880

Interface codes

J6 /

ISYC Subclass

301-03 - Thread forming tap with offset shank

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0110

LOC-03 DCONMS Diameter

11 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01102105

LS Shank length

47 mm

Name Identifying order number

4491 14.288

NOF Flute count

OAL Overall length

110 mm

PLCD Gate diameter

10.76 mm

PLG Plug style

C - Kappa r 15°

STDNO Standard

DIN376~

TCDCONMS ISO-tolerance class shank diameter

TCL Tap chamfer length

5.293 mm

TCTR Thread tolerance class

2BX

TDFR Thread diameter nominal fraction

9/16 in

TDIN Thread diameter nominal inch

0.5625 in

THFT Thread form type

UNC

THL Thread cutting part length

28 mm

THOD Thread designation

UNC9/16-12-2BX

TP Thread pitch

2.117 mm

TPI Threads per inch

12 1/in

TTPID Tap type identifier

4 - Forming tap

Working process

No working processes available

WT Weight of item

0.089 kg
