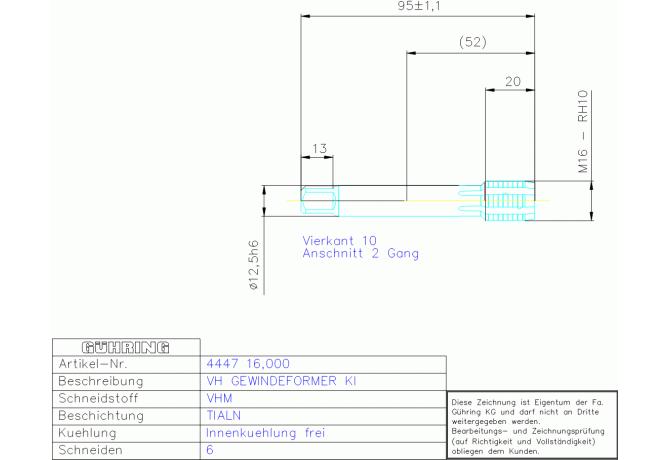

Главная Каталог продукции СЗЦПК инструмент 12 301-03 - Thread forming tap with offset shank 4447 16.000

4447 16.000

4447 16.000 4447 16.000

4447 16.000

Gühring
Артикул: 4447 16.000
В наличии
В корзину
Описание
Характеристики
BMC Body material code
H - Solid carbide
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COATN Coating / Покрытие
OHNE
COMPC Company code
GG - Gühring
CPDSC Cutting part design style code
1 - With oil groove & dirt groove
CXSC Coolant exit style code
2 - With Coolant exit, radial
DCONMSLD Shank diameter lower limit
-0.011 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/18/2024
DIN
ZYL01252115
DRVS Drive size
10 mm
FamilyProducts
VHM A KI-GFO M,SN M16 JISB4430 FORM C
FHH Flute helix hand
N - Hand of helix neutral
GRD2ND Standard designation of the grade 2nd application
VHM
GRDMFG Grade manufacturers designation
VHM
GRDPRIO Standard designation of the grade main application
HF
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
301-03 - Thread forming tap with offset shank
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0125
LOC-03 DCONMS Diameter
12.5 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01252115
LS Shank length
47 mm
Name Identifying order number
4447 16.000
NOF Flute count
6
OAL Overall length
95 mm
PLG Plug style
C - Kappa r 15°
STDNO Standard
JIS B 4430
TCL Tap chamfer length
4 mm
TCTR Thread tolerance class
RH10
TD Thread diameter
16 mm
THFT Thread form type
M
THL Thread cutting part length
20 mm
THOD Thread designation
M16x2-RH10
TP Thread pitch
2 mm
TTPID Tap type identifier
4 - Forming tap
Working process
No working processes available
WT Weight of item
0.176 kg
