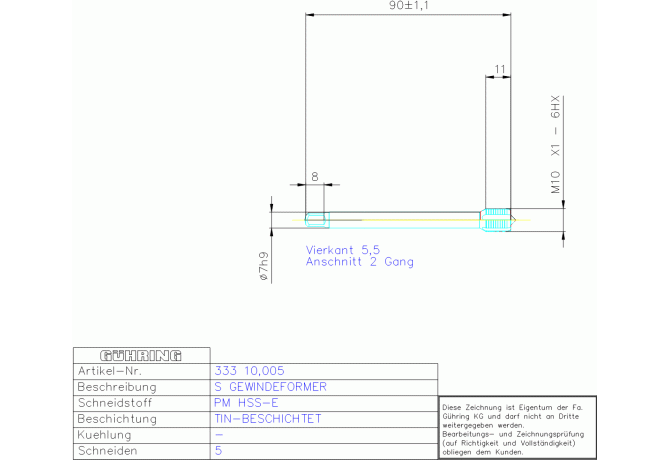

Главная Каталог продукции Toolunited 12 301-03 - Thread forming tap with offset shank 333 10.005

333 10.005

Артикул: 9003330100050

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

TIN

COMPC Company code

GG - Gühring

CPDSC Cutting part design style code

1 - With oil groove & dirt groove

CXSC Coolant exit style code

0 - Without coolant exit

DCONMSLD Shank diameter lower limit

-0.036 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

ZYL00702105

DRVS Drive size

5.5 mm

FamilyProducts

PM HSS-E S-GFO M10X1 DIN 374 RN C

FHH Flute helix hand

N - Hand of helix neutral

GRD2ND Standard designation of the grade 2nd application

PM HSS-E

GRDMFG Grade manufacturers designation

PM HSS-E

GRDPRIO Standard designation of the grade main application

HSS-E-PM

HAND Cutting direction

R - Right

ID Technical product number

9003330100050

Interface codes

J6 /

ISYC Subclass

301-03 - Thread forming tap with offset shank

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0070

LOC-03 DCONMS Diameter

7 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$09

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00702105

LS Shank length

77.4 mm

Name Identifying order number

333 10.005

NOF Flute count

OAL Overall length

90 mm

PLG Plug style

C - Kappa r 15°

STDNO Standard

DIN 374~

TCDCONMS ISO-tolerance class shank diameter

TCL Tap chamfer length

2 mm

TCTR Thread tolerance class

6HX

TD Thread diameter

10 mm

THFT Thread form type

THL Thread cutting part length

11 mm

THOD Thread designation

M10x1-6HX

TP Thread pitch

1 mm

TTPID Tap type identifier

4 - Forming tap

Working process

No working processes available

WT Weight of item

0.04 kg
