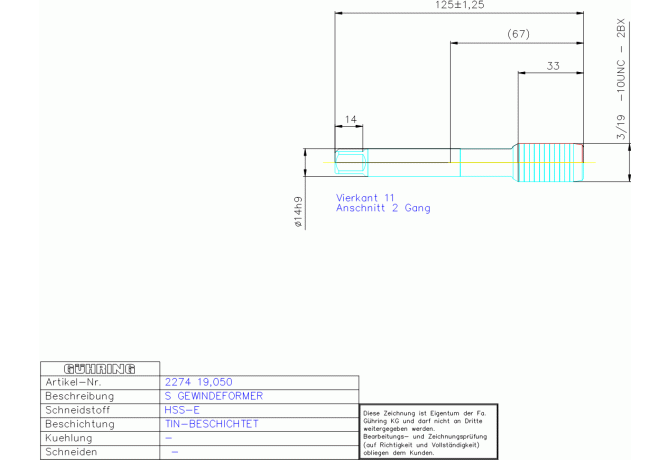

Главная Каталог продукции Toolunited 12 301-03 - Thread forming tap with offset shank 2274 19.050

2274 19.050

2274 19.050 2274 19.050

2274 19.050

Gühring
Артикул: 9022740190500
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating / Покрытие
TIN
COMPC Company code
GG - Gühring
CRCLDIN Chip removal class
N
CXSC Coolant exit style code
0 - Without coolant exit
DCONMSLD Shank diameter lower limit
-0.043 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2021
DIN
ZYL01402105
DRVS Drive size
11 mm
FamilyProducts
HSS-E UNC S-MASCH,-GFO 3/4 -10 DIN 376
FHH Flute helix hand
N - Hand of helix neutral
GRDMFG Grade manufacturers designation
HSS-E
GRDPRIO Standard designation of the grade main application
HSS-E
HAND Cutting direction
R - Right
ID Technical product number
9022740190500
Interface codes
J6 /
ISYC Subclass
301-03 - Thread forming tap with offset shank
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0140
LOC-03 DCONMS Diameter
14 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$09
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01402105
LS Shank length
62.9 mm
Name Identifying order number
2274 19.050
OAL Overall length
125 mm
PLG Plug style
C - Kappa r 15°
STDNO Standard
DIN376~
TCDCONMS ISO-tolerance class shank diameter
h9
TCL Tap chamfer length
5.08 mm
TCTR Thread tolerance class
2BX
TDFR Thread diameter nominal fraction
3/4 in
TDIN Thread diameter nominal inch
0.75 in
THFT Thread form type
UNC
THL Thread cutting part length
33 mm
THOD Thread designation
UNC3/4-10-2BX
TP Thread pitch
2.54 mm
TPI Threads per inch
10 1/in
TTPID Tap type identifier
4 - Forming tap
Working process
No working processes available
WT Weight of item
0.168 kg
