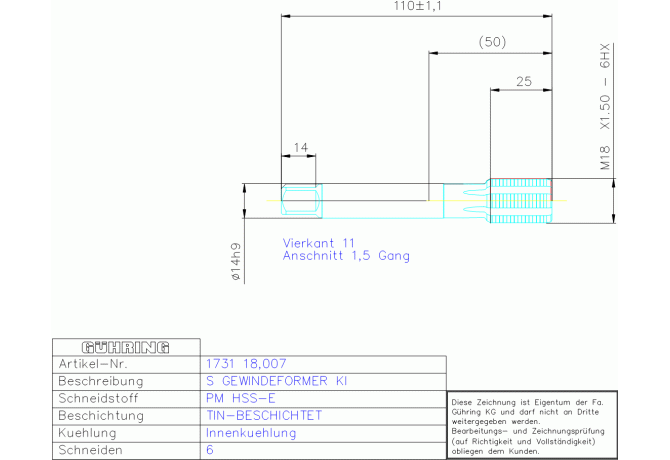

Главная Каталог продукции Toolunited 12 301-03 - Thread forming tap with offset shank 1731 18.007

1731 18.007

1731 18.007 1731 18.007

1731 18.007

Gühring
Артикул: 9017310180070
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COATN Coating / Покрытие
TIN
COMPC Company code
GG - Gühring
CPDSC Cutting part design style code
1 - With oil groove & dirt groove
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DCONMSLD Shank diameter lower limit
-0.043 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2021
DIN
ZYL01402115
DRVS Drive size
11 mm
FamilyProducts
PM HSSE S-GFO DIN2174 FORM E 6HX SN IKZ
FHH Flute helix hand
N - Hand of helix neutral
GRD2ND Standard designation of the grade 2nd application
PM HSS-E
GRDMFG Grade manufacturers designation
PM HSS-E
GRDPRIO Standard designation of the grade main application
HSS-E-PM
HAND Cutting direction
R - Right
ID Technical product number
9017310180070
Interface codes
J6 / J61
ISO
ZYL21G1400h$09
ISYC Subclass
301-03 - Thread forming tap with offset shank
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0140
LOC-03 DCONMS Diameter
14 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$09
LOC-03 ISO
ZYL21G1400h$09
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01402115
LS Shank length
65.9 mm
Name Identifying order number
1731 18.007
NOF Flute count
6
OAL Overall length
110 mm
PLG Plug style
E - Kappa r 23°
STDNO Standard
DIN 374~
TCDCONMS ISO-tolerance class shank diameter
h9
TCL Tap chamfer length
2.25 mm
TCTR Thread tolerance class
6HX
TD Thread diameter
18 mm
THFT Thread form type
MF
THL Thread cutting part length
25 mm
THOD Thread designation
MF18x1.5-6HX
TP Thread pitch
1.5 mm
TTPID Tap type identifier
4 - Forming tap
Working process
No working processes available
WT Weight of item
0.142 kg
