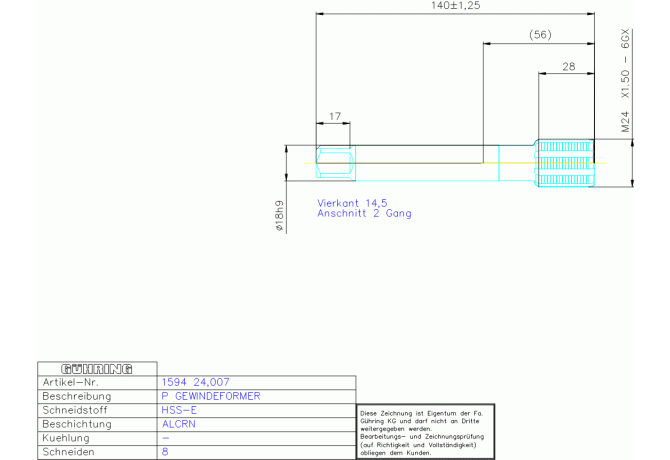

Главная Каталог продукции Toolunited 12 301-03 - Thread forming tap with offset shank 1594 24.007

1594 24.007

1594 24.007 1594 24.007

1594 24.007

Gühring
Артикул: 9015940240070
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating / Покрытие
OHNE
COMPC Company code
GG - Gühring
CPDSC Cutting part design style code
1 - With oil groove & dirt groove
CRCLDIN Tool application class
N
CXSC Coolant exit style code
0 - Without coolant exit
DCONMSLD Shank diameter lower limit
-0.043 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2021
DIN
ZYL01802105
DRVS Drive size
14.5 mm
FamilyProducts
HSS-E P-GFO DIN2174 C 6GX M,SN METR.FEIN
FHH Flute helix hand
N - Hand of helix neutral
GRDMFG Grade manufacturers designation
HSS-E
GRDPRIO Standard designation of the grade main application
HSS-E
HAND Cutting direction
R - Right
ID Technical product number
9015940240070
Interface codes
J6 /
ISYC Subclass
301-03 - Thread forming tap with offset shank
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0180
LOC-03 DCONMS Diameter
18 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$09
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01802105
LS Shank length
91.9 mm
Name Identifying order number
1594 24.007
NOF Flute count
8
OAL Overall length
140 mm
PLG Plug style
C - Kappa r 15°
STDNO Standard
DIN374~
TCDCONMS ISO-tolerance class shank diameter
h9
TCL Tap chamfer length
3 mm
TCTR Thread tolerance class
6GX
TD Thread diameter
24 mm
THFT Thread form type
MF
THL Thread cutting part length
28 mm
THOD Thread designation
MF24x1.5-6GX
TP Thread pitch
1.5 mm
TTPID Tap type identifier
4 - Forming tap
Working process
No working processes available
WT Weight of item
0.315 kg
