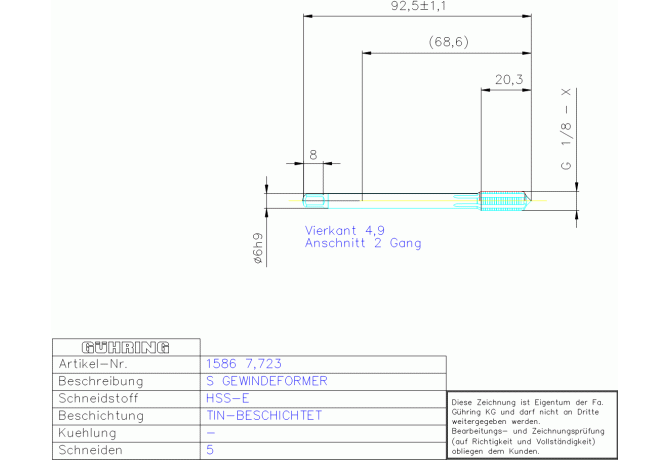

Главная Каталог продукции Toolunited 12 301-03 - Thread forming tap with offset shank 1586 7.723

1586 7.723

1586 7.723 1586 7.723

1586 7.723

Gühring
Артикул: 9015860077230
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating / Покрытие
TIN
COMPC Company code
GG - Gühring
CPDSC Cutting part design style code
1 - With oil groove & dirt groove
CXSC Coolant exit style code
0 - Without coolant exit
DCONMSLD Shank diameter lower limit
-0.03 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2021
DIN
ZYL00602105
DRVS Drive size
4.9 mm
FamilyProducts
HSS-E G 1/16 GFO DIN 5156 RN C MIT SN
FHH Flute helix hand
N - Hand of helix neutral
GRDMFG Grade manufacturers designation
HSS-E
GRDPRIO Standard designation of the grade main application
HSS-E
HAND Cutting direction
R - Right
ID Technical product number
9015860077230
Interface codes
J6 / J61
ISO
ZYL21F6000h$09
ISYC Subclass
301-03 - Thread forming tap with offset shank
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0060
LOC-03 DCONMS Diameter
6 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$09
LOC-03 ISO
ZYL21F6000h$09
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00602105
LS Shank length
71.1 mm
Name Identifying order number
1586 7.723
NOF Flute count
5
OAL Overall length
90 mm
PLG Plug style
C - Kappa r 15°
STDNO Standard
DIN 2189
TCDCONMS ISO-tolerance class shank diameter
h9
TCL Tap chamfer length
1.814 mm
TDFR Thread diameter nominal fraction
1/16 in
TDIN Thread diameter nominal inch
0.0625 in
THFT Thread form type
G
THL Thread cutting part length
18 mm
TP Thread pitch
0.907 mm
TPI Threads per inch
28 1/in
TTPID Tap type identifier
4 - Forming tap
Working process
No working processes available
WT Weight of item
0.027 kg
