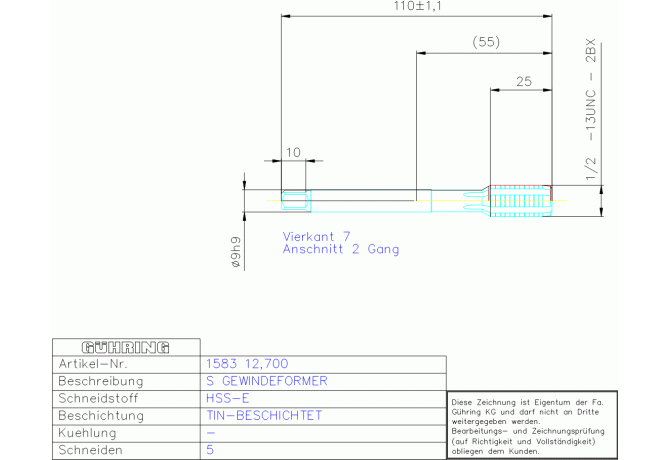

Главная Каталог продукции Toolunited 12 301-03 - Thread forming tap with offset shank 1583 12.700

1583 12.700

1583 12.700 1583 12.700

1583 12.700

Gühring
Артикул: 9015830127000
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating
TIN
COMPC Company code
GG - Gühring
CPDSC Cutting part design style code
1 - With oil groove & dirt groove
CRCLDIN Tool application class
N
CXSC Coolant exit style code
0 - Without coolant exit
DCONMSLD Shank diameter lower limit
-0.036 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2021
DIN
ZYL00902105
DRVS Drive size
7 mm
FamilyProducts
HSS-E UNC S-GFO DIN2184-1 RN C M,SN 2BX
FHH Flute helix hand
N - Hand of helix neutral
GRDMFG Grade manufacturers designation
HSS-E
GRDPRIO Standard designation of the grade main application
HSS-E
HAND Cutting direction
R - Right
ID Technical product number
9015830127000
Interface codes
J6 /
ISYC Subclass
301-03 - Thread forming tap with offset shank
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0090
LOC-03 DCONMS Diameter
9 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$09
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00902105
LS Shank length
60.9 mm
Name Identifying order number
1583 12.700
NOF Flute count
5
OAL Overall length
110 mm
PLG Plug style
C - Kappa r 15°
STDNO Standard
DIN376~
TCDCONMS ISO-tolerance class shank diameter
h9
TCL Tap chamfer length
3.908 mm
TCTR Thread tolerance class
2BX
TDFR Thread diameter nominal fraction
1/2 in
TDIN Thread diameter nominal inch
0.5 in
THFT Thread form type
UNC
THL Thread cutting part length
25 mm
THOD Thread designation
UNC1/2-13-2BX
TP Thread pitch
1.954 mm
TPI Threads per inch
13 1/in
TTPID Tap type identifier
4 - Forming tap
Working process
No working processes available
WT Weight of item
0.063 kg
