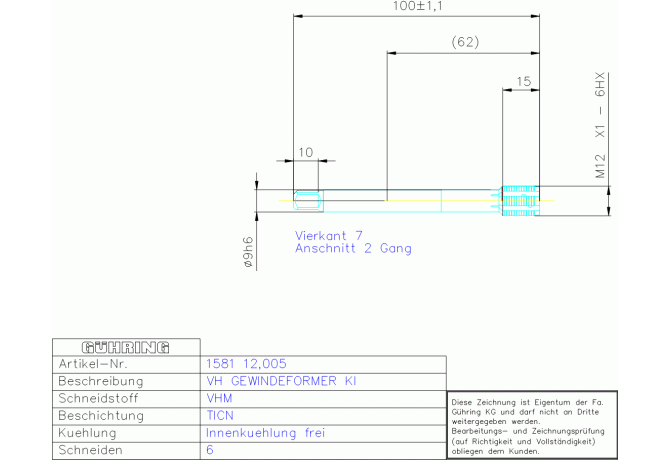

Главная Каталог продукции Toolunited 12 301-03 - Thread forming tap with offset shank 1581 12.005

1581 12.005

1581 12.005 1581 12.005

1581 12.005

Gühring
Артикул: 9015810120050
В наличии
В корзину
Описание
Характеристики
BMC Body material code
H - Solid carbide
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COATN Coating
TICN
COMPC Company code
GG - Gühring
CPDSC Cutting part design style code
1 - With oil groove & dirt groove
CXSC Coolant exit style code
2 - With Coolant exit, radial
DCONMSLD Shank diameter lower limit
-0.009 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2021
DIN
ZYL00902115
DRVS Drive size
7 mm
FamilyProducts
VH TICN GFO KI-RAD, DIN2174 C M12 X1
FHH Flute helix hand
N - Hand of helix neutral
GRD2ND Standard designation of the grade 2nd application
VHM
GRDMFG Grade manufacturers designation
VHM
GRDPRIO Standard designation of the grade main application
HC-K/P
HAND Cutting direction
R - Right
ID Technical product number
9015810120050
Interface codes
J6 / J61
ISO
ZYL21F9000h$06
ISYC Subclass
301-03 - Thread forming tap with offset shank
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0090
LOC-03 DCONMS Diameter
9 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$06
LOC-03 ISO
ZYL21F9000h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00902115
LS Shank length
42 mm
Name Identifying order number
1581 12.005
NOF Flute count
6
OAL Overall length
100 mm
PLG Plug style
C - Kappa r 15°
STDNO Standard
DIN 374~
TCDCONMS ISO-tolerance class shank diameter
h6
TCL Tap chamfer length
2 mm
TCTR Thread tolerance class
6HX
TD Thread diameter
12 mm
THFT Thread form type
MF
THL Thread cutting part length
15 mm
THOD Thread designation
MF12x1-6HX
TP Thread pitch
1 mm
TTPID Tap type identifier
4 - Forming tap
Working process
No working processes available
WT Weight of item
0.102 kg
