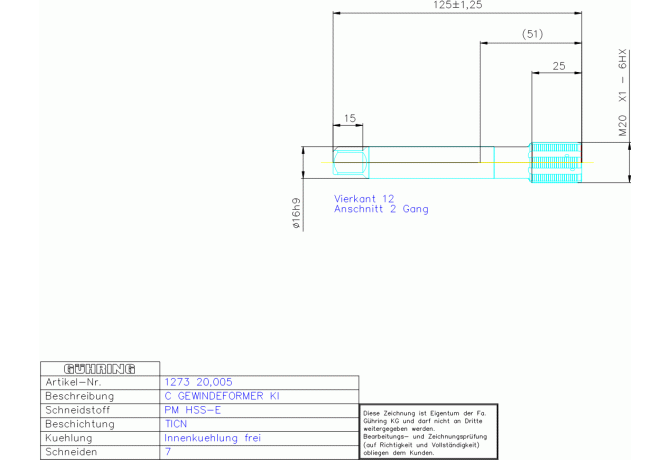

Главная Каталог продукции Toolunited 12 301-03 - Thread forming tap with offset shank 1273 20.005

1273 20.005

1273 20.005 1273 20.005

1273 20.005

Gühring
Артикул: 9012730200050
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COATN Coating
TICN
COMPC Company code
GG - Gühring
CPDSC Cutting part design style code
1 - With oil groove & dirt groove
CXSC Coolant exit style code
2 - With Coolant exit, radial
DCONMSLD Shank diameter lower limit
-0.043 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2021
DIN
ZYL01602115
DRVS Drive size
12 mm
FamilyProducts
PM HSSE C-KI-GFO DIN2174 MF-6HX SN LG
FHH Flute helix hand
N - Hand of helix neutral
GRD2ND Standard designation of the grade 2nd application
PM HSS-E
GRDMFG Grade manufacturers designation
PM HSS-E
GRDPRIO Standard designation of the grade main application
HSS-E-PM
HAND Cutting direction
R - Right
ID Technical product number
9012730200050
Interface codes
J6 / J61
ISO
ZYL21G1600h$09
ISYC Subclass
301-03 - Thread forming tap with offset shank
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0160
LOC-03 DCONMS Diameter
16 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$09
LOC-03 ISO
ZYL21G1600h$09
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01602115
LS Shank length
80.9 mm
Name Identifying order number
1273 20.005
NOF Flute count
7
OAL Overall length
125 mm
PLG Plug style
C - Kappa r 15°
STDNO Standard
DIN 374~
TCDCONMS ISO-tolerance class shank diameter
h9
TCL Tap chamfer length
2 mm
TCTR Thread tolerance class
6HX
TD Thread diameter
20 mm
THFT Thread form type
MF
THL Thread cutting part length
25 mm
THOD Thread designation
MF20x1-6HX
TP Thread pitch
1 mm
TTPID Tap type identifier
4 - Forming tap
Working process
No working processes available
WT Weight of item
0.021 kg
