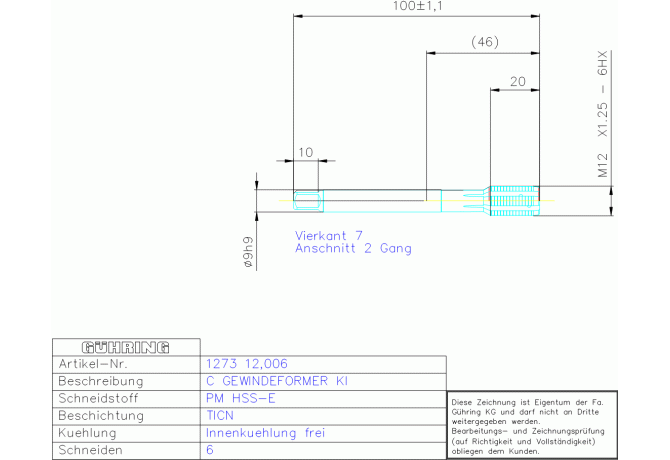

Главная Каталог продукции Toolunited 12 301-03 - Thread forming tap with offset shank 1273 12.006

1273 12.006

Артикул: 9012730120060

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COATN Coating / Покрытие

TICN

COMPC Company code

GG - Gühring

CPDSC Cutting part design style code

1 - With oil groove & dirt groove

CRCLDIN Tool application class

CXSC Coolant exit style code

2 - With Coolant exit, radial

DCONMSLD Shank diameter lower limit

-0.036 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

ZYL00902115

DRVS Drive size

7 mm

FamilyProducts

PM HSSE C-KI-GFO DIN2174 MF-6HX SN LG

FHH Flute helix hand

N - Hand of helix neutral

GRD2ND Standard designation of the grade 2nd application

PM HSS-E

GRDMFG Grade manufacturers designation

PM HSS-E

GRDPRIO Standard designation of the grade main application

HSS-E-PM

HAND Cutting direction

R - Right

ID Technical product number

9012730120060

Interface codes

J6 /

ISYC Subclass

301-03 - Thread forming tap with offset shank

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0090

LOC-03 DCONMS Diameter

9 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$09

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00902115

LS Shank length

59.9 mm

Name Identifying order number

1273 12.006

NOF Flute count

OAL Overall length

100 mm

PLG Plug style

C - Kappa r 15°

STDNO Standard

DIN374~

TCDCONMS ISO-tolerance class shank diameter

TCL Tap chamfer length

2.5 mm

TCTR Thread tolerance class

6HX

TD Thread diameter

12 mm

THFT Thread form type

THL Thread cutting part length

20 mm

THOD Thread designation

MF12x1.25-6HX

TP Thread pitch

1.25 mm

TTPID Tap type identifier

4 - Forming tap

Working process

No working processes available

WT Weight of item

0.005 kg
