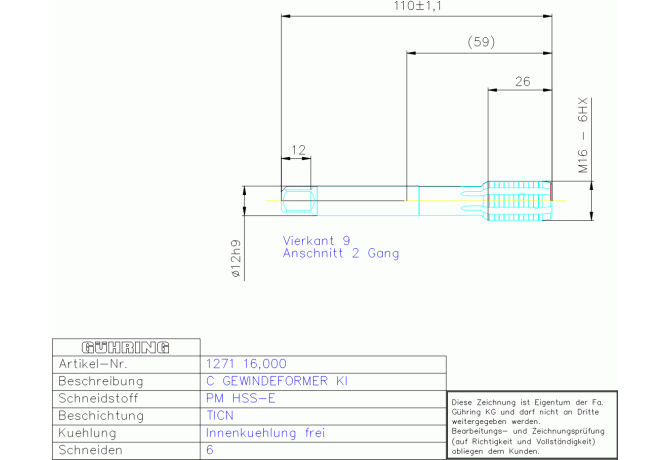

Главная Каталог продукции Toolunited 12 301-03 - Thread forming tap with offset shank 1271 16.000

1271 16.000

Артикул: 9012710160000

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COATN Coating

TICN

COMPC Company code

GG - Gühring

CPDSC Cutting part design style code

1 - With oil groove & dirt groove

CXSC Coolant exit style code

2 - With Coolant exit, radial

DCONMSLD Shank diameter lower limit

-0.043 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

ZYL01202115

DRVS Drive size

9 mm

FamilyProducts

PM HSSE C-KI-GBO DIN2174 M16 -6HX SN LG

FHH Flute helix hand

N - Hand of helix neutral

GRD2ND Standard designation of the grade 2nd application

PM HSS-E

GRDMFG Grade manufacturers designation

PM HSS-E

GRDPRIO Standard designation of the grade main application

HSS-E-PM

HAND Cutting direction

R - Right

ID Technical product number

9012710160000

Interface codes

J6 / J61

ISO

ZYL21G1200h$09

ISYC Subclass

301-03 - Thread forming tap with offset shank

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0120

LOC-03 DCONMS Diameter

12 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$09

LOC-03 ISO

ZYL21G1200h$09

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01202115

LS Shank length

55.9 mm

Name Identifying order number

1271 16.000

NOF Flute count

OAL Overall length

110 mm

PLG Plug style

C - Kappa r 15°

STDNO Standard

DIN 376~

TCDCONMS ISO-tolerance class shank diameter

TCL Tap chamfer length

4 mm

TCTR Thread tolerance class

6HX

TD Thread diameter

16 mm

THFT Thread form type

THL Thread cutting part length

26 mm

THOD Thread designation

M16x2-6HX

TP Thread pitch

2 mm

TTPID Tap type identifier

4 - Forming tap

Working process

No working processes available

WT Weight of item

0.01 kg
