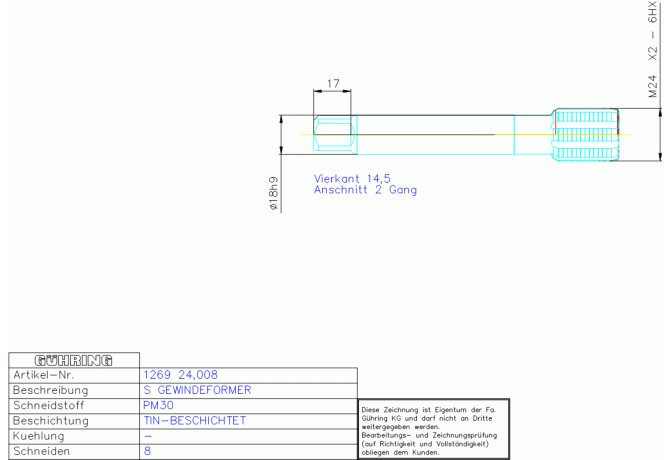

Главная Каталог продукции Toolunited 12 301-03 - Thread forming tap with offset shank 1269 24.008

1269 24.008

1269 24.008 1269 24.008

1269 24.008

Gühring
Артикул: 9012690240080
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating / Покрытие
TIN
COMPC Company code
GG - Gühring
CPDSC Cutting part design style code
1 - With oil groove & dirt groove
CXSC Coolant exit style code
0 - Without coolant exit
DCONMSLD Shank diameter lower limit
-0.043 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2021
DIN
ZYL01802105
DRVS Drive size
14.5 mm
FamilyProducts
PM HSS-E S-GFO DIN2174 MF 6HX SN LANG
FHH Flute helix hand
N - Hand of helix neutral
GRD2ND Standard designation of the grade 2nd application
PM30
GRDMFG Grade manufacturers designation
PM30
GRDPRIO Standard designation of the grade main application
HSS-E-PM
HAND Cutting direction
R - Right
ID Technical product number
9012690240080
Interface codes
J6 /
ISYC Subclass
301-03 - Thread forming tap with offset shank
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0180
LOC-03 DCONMS Diameter
18 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$09
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01802105
LS Shank length
91.9 mm
Name Identifying order number
1269 24.008
NOF Flute count
8
OAL Overall length
140 mm
PLG Plug style
C - Kappa r 15°
STDNO Standard
DIN 374~
TCDCONMS ISO-tolerance class shank diameter
h9
TCL Tap chamfer length
4 mm
TCTR Thread tolerance class
6HX
TD Thread diameter
24 mm
THFT Thread form type
M
THL Thread cutting part length
28 mm
THOD Thread designation
M24x2-6HX
TP Thread pitch
2 mm
TTPID Tap type identifier
4 - Forming tap
Working process
No working processes available
WT Weight of item
0.032 kg
