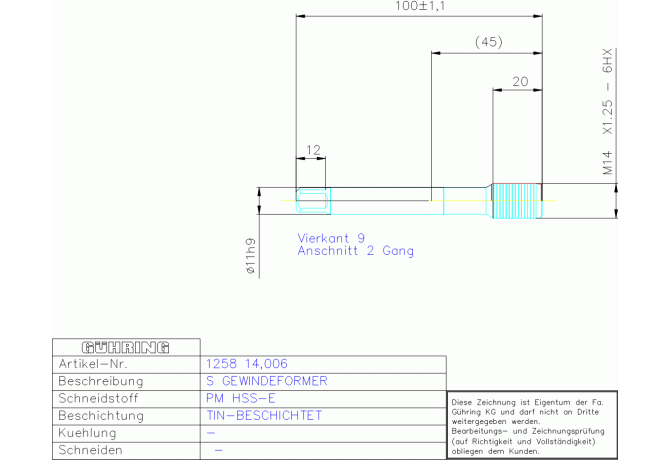

Главная Каталог продукции Toolunited 12 301-03 - Thread forming tap with offset shank 1258 14.006

1258 14.006

Артикул: 9012580140060

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

TIN

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

0 - Without coolant exit

DCONMSLD Shank diameter lower limit

-0.043 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

ZYL01102105

DRVS Drive size

9 mm

FamilyProducts

PM HSSE S-GFO DIN2174 MF 6HX O,SN LANG

FHH Flute helix hand

N - Hand of helix neutral

GRD2ND Standard designation of the grade 2nd application

PM HSS-E

GRDMFG Grade manufacturers designation

PM HSS-E

GRDPRIO Standard designation of the grade main application

HSS-E-PM

HAND Cutting direction

R - Right

ID Technical product number

9012580140060

Interface codes

J6 / J61

ISO

ZYL21G1100h$09

ISYC Subclass

301-03 - Thread forming tap with offset shank

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0110

LOC-03 DCONMS Diameter

11 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$09

LOC-03 ISO

ZYL21G1100h$09

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01102105

LS Shank length

59.9 mm

Name Identifying order number

1258 14.006

OAL Overall length

100 mm

PLG Plug style

C - Kappa r 15°

STDNO Standard

DIN 374~

TCDCONMS ISO-tolerance class shank diameter

TCL Tap chamfer length

2.5 mm

TCTR Thread tolerance class

6HX

TD Thread diameter

14 mm

THFT Thread form type

THL Thread cutting part length

20 mm

THOD Thread designation

MF14x1.25-6HX

TP Thread pitch

1.25 mm

TTPID Tap type identifier

4 - Forming tap

Working process

No working processes available

WT Weight of item

0.008 kg
