Главная Каталог продукции Toolunited 12 307-05 - Single row rounded end mill R217.29I-2520.3-05.2.070A

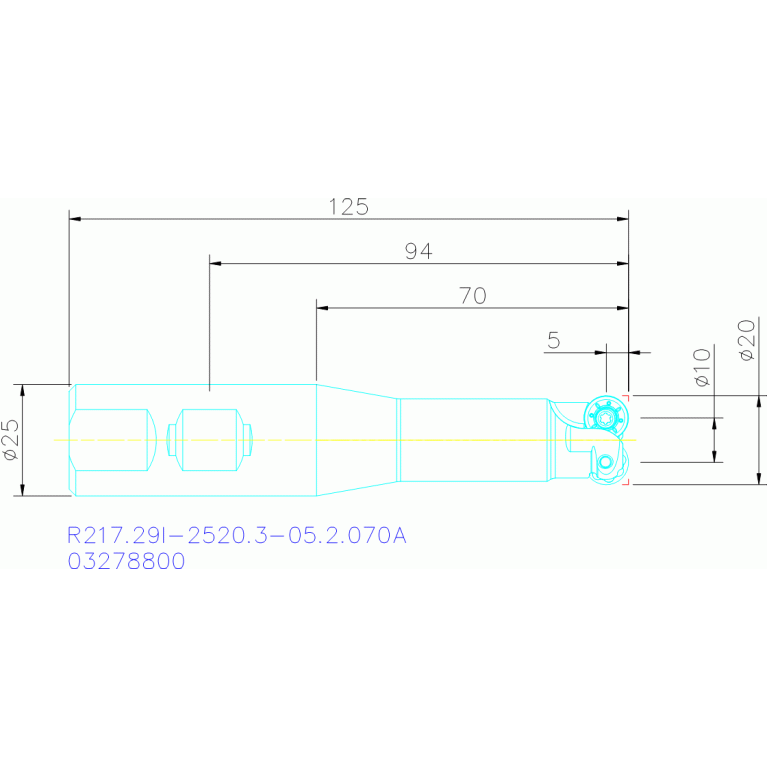

R217.29I-2520.3-05.2.070A

R217.29I-2520.3-05.2.070A R217.29I-2520.3-05.2.070A R217.29I-2520.3-05.2.070A R217.29I-2520.3-05.2.070A

R217.29I-2520.3-05.2.070A

SECO Tools
Артикул: 03278800
В наличии
В корзину
Описание
Характеристики
APMX Depth of cut maximum
5 mm
CCONMS Connection count machine side
1
CICT Cutting item count
2
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DC Cutting diameter
10 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
20 mm
Delivery state valid from
12/1/2023
DIN
ZYL02501015
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
2
FamilyProducts
R217.29I-2520.3-05.2.070A
GAMF Rake angle radial
0.6 Degree
GAMP Rake angle axial
0 Degree
HAND Cutting direction
R - Right
ID Technical product number
03278800
Interface codes
J6 /
ISYC Subclass
307-05 - Single row rounded end mill
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0250
LOC-03 DCONMS Diameter
25 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02501015
LPR Protruding length
70 mm
LS Shank length
55.5 mm
LU Usable length
70 mm
MILTTY Mill tool type ISO
N - Torus End Mill
Name Identifying order number
R217.29I-2520.3-05.2.070A
OAL Overall length
125.5 mm
RMPX Ramping angle maximum
90 Degree
RPMX Rotational speed maximum
27400 1/min
Working process
No working processes available
WT Weight of item
0.372 kg
