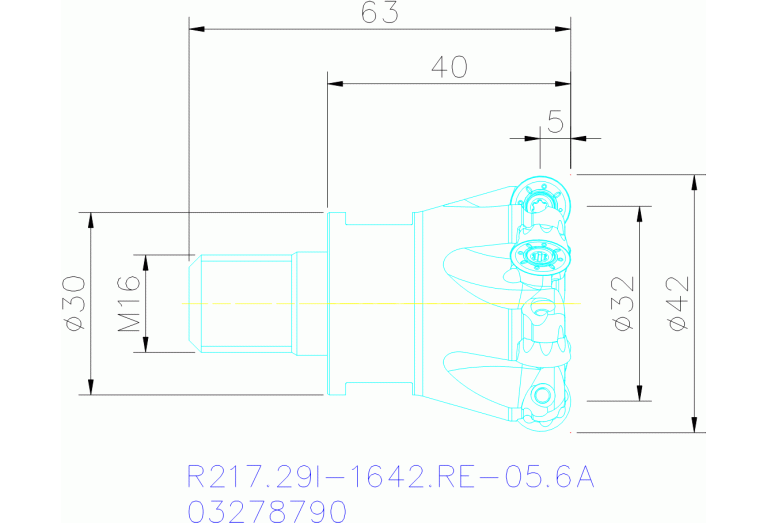

R217.29I-1642.RE-05.6A
R217.29I-1642.RE-05.6A
Артикул:
03278790
В наличии
Характеристики
APMX Depth of cut maximum
5 mm
CCONMS Connection count machine side
1
CICT Cutting item count
6
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DC Cutting diameter
32 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
42 mm
Delivery state valid from
12/1/2023
DIN
SCM01600115
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
6
FamilyProducts
R217.29I-1642.RE-05.6A
GAMF Rake angle radial
-6 Degree
GAMP Rake angle axial
4 Degree
HAND Cutting direction
R - Right
ID Technical product number
03278790
Interface codes
J6 /
ISYC Subclass
307-05 - Single row rounded end mill
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SCM
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0160
LOC-03 DCONMS Diameter
16 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SCM01600115
MILTTY Mill tool type ISO
N - Torus End Mill
Name Identifying order number
R217.29I-1642.RE-05.6A
OAL Overall length
62.75 mm
RMPX Ramping angle maximum
6 Degree
RPMX Rotational speed maximum
18800 1/min
THSZMS Connection thread nominal size machine side
M16
Working process
No working processes available
WT Weight of item
0.272 kg
