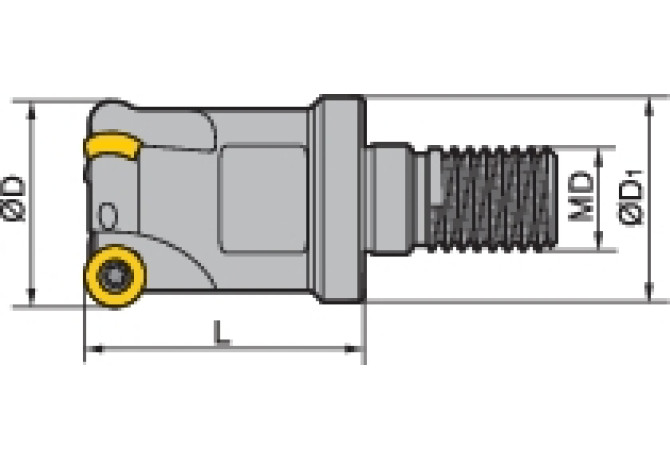

QCH-42-RD12-M16-05-FMR11

Артикул: QCH-42-RD12-M16-05-FMR11

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

15 Degree

B3A Inscribed circle diameter Pos. A

12 mm

BLDA Tool style code Position A

BMC Body material code

S - Solid steel

C1A Insert thickness Pos. A

4.76 mm

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

ZCC - ZCC Cutting Tools

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DC Cutting diameter

30 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

42 mm

Delivery state

LH - Stocked

DIN

SAZ01600115

DN Neck diameter

40 mm

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

Indexable heads – QCH series

HAND Cutting direction

R - Right

ID Identifying order number

QCH-42-RD12-M16-05-FMR11

Interface codes

J6 /

ISISO A Indicator for ISO cutting plate Pos.A

ISYC Subclass

307-05 - Single row rounded end mill

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

SAZ

LOC-03 CCUMS Unit base

1 Metric with coolant

LOC-03 CZCMS Size code

0160

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SAZ01600115

LPR Protruding length

45 mm

THSZMS Connection thread nominal size machine side

M16

Working process

FFO - Die milling,FPL - Face milling,FZI - Circular milling

WT Weight of item

0.279 kg

ZEFF Face effective cutting edge count
