Главная Каталог продукции Toolunited 12 307-05 - Single row rounded end mill M5468-012-TC06-03-02.5

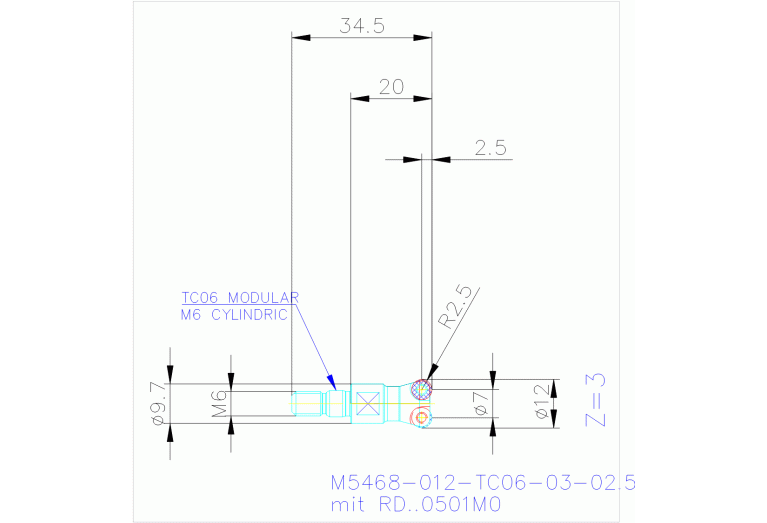

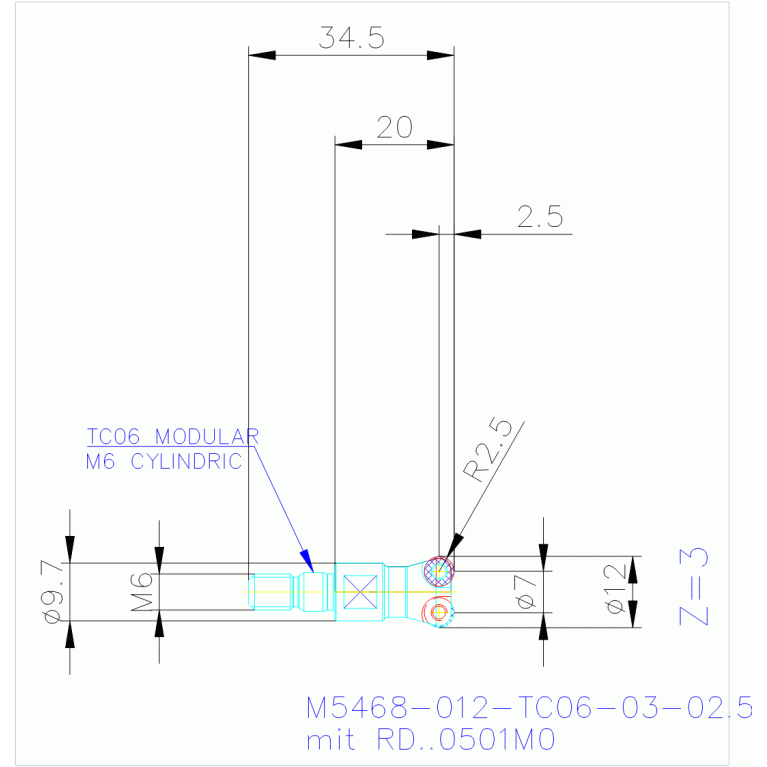

M5468-012-TC06-03-02.5

M5468-012-TC06-03-02.5 M5468-012-TC06-03-02.5 M5468-012-TC06-03-02.5 M5468-012-TC06-03-02.5

M5468-012-TC06-03-02.5

Walter
Артикул: 7988670
В наличии
В корзину
Описание
Характеристики
ADJBY Adjustment property
0 - Adjustment not possible
APMX Depth of cut maximum
2.5 mm
AZ Plunge depth maximum
0.5 mm
BD Body diameter
11.3 mm
BLDA Tool style code Position A
10
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
2
CICT Cutting item count
3
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
D1A Corner radius Pos. A
2.5 mm
DC Cutting diameter
7 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
12 mm
Delivery state valid from
12/1/2023
DIN
SAW00600215
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
3
FamilyProducts
Round insert milling cutters M5468
GAMF Rake angle radial
0 Degree
GAMP Rake angle axial
0 Degree
HAND Cutting direction
R - Right
ID Technical product number
7988670
Interface codes
J6 / J61
ISO
SAW02A0060$$$$
ISYC Subclass
307-05 - Single row rounded end mill
LOC-03 CCFMS Form
02
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
SAW Screw mounting WALTER
LOC-03 CCUMS Unit base
1 Metric with coolant
LOC-03 CZCMS Size code
0060
LOC-03 DCONMS Diameter
9.7 mm
LOC-03 ISO
SAW02A0060$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SAW00600215
LPR Protruding length
20 mm
LS Shank length
14.5 mm
LU Usable length
20 mm
MILTTY Mill tool type ISO
N - Torus End Mill
Name Identifying order number
M5468-012-TC06-03-02.5
OAL Overall length
34.5 mm
RMPX Ramping angle maximum
14.1 Degree
RPMX Rotational speed maximum
40000 1/min
Working process
FFO - Die milling,FPL - Face milling,FSE - Counter-sinking,FZI - Circular milling
WT Weight of item
0.011 kg
ZEFF Face effective cutting edge count
3
ZEFP Peripheral effective cutting edge count
3
