Главная Каталог продукции Toolunited 12 307-13 - Die and mold end mill M5460.019-W26-02-10

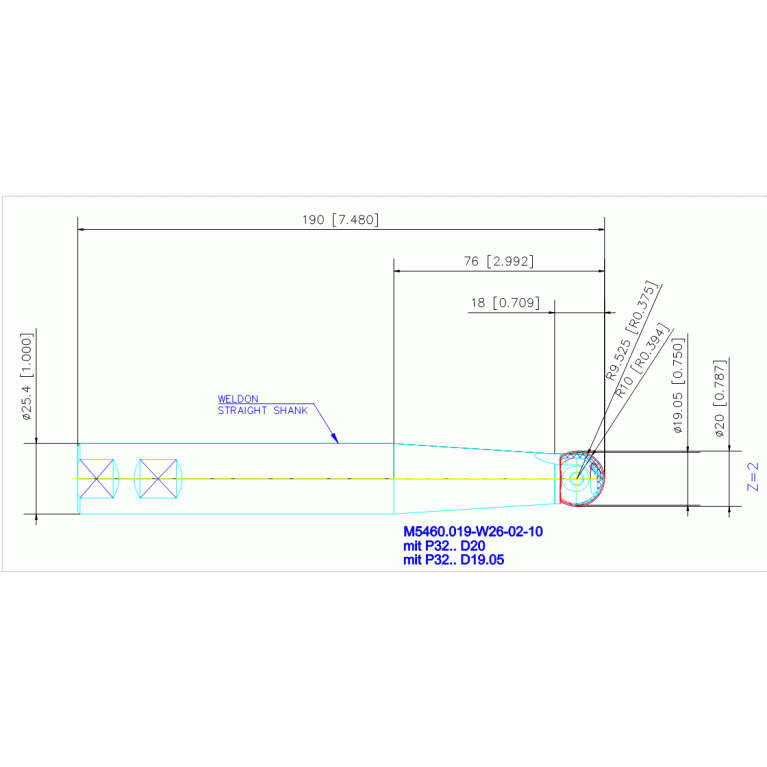

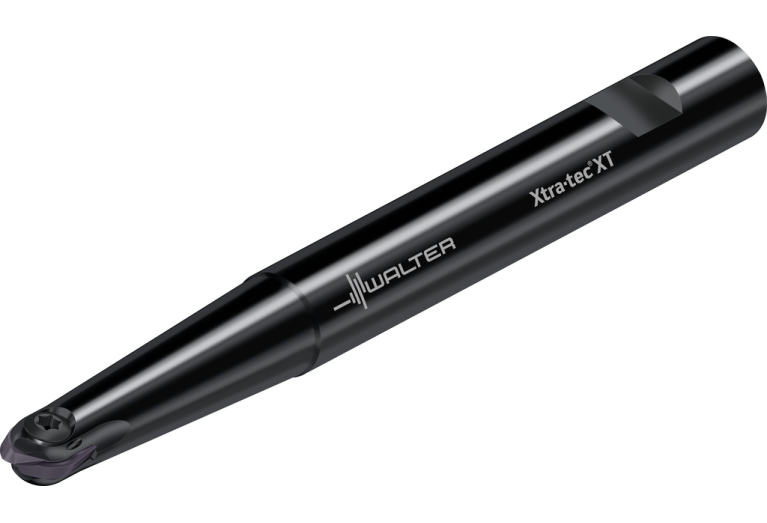

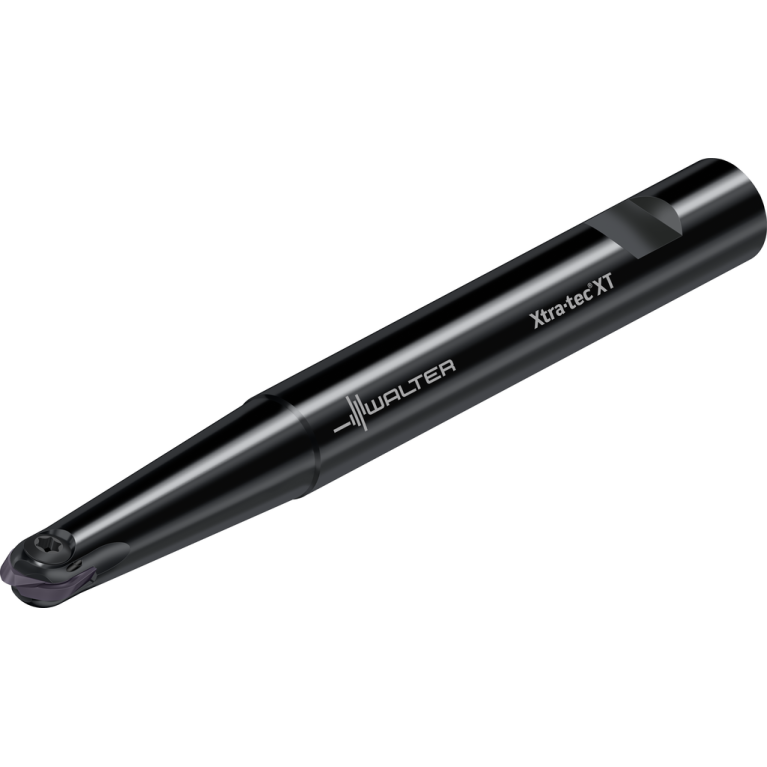

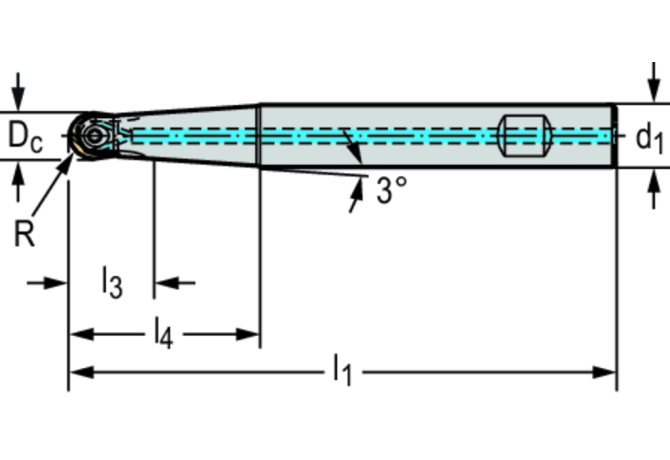

M5460.019-W26-02-10

M5460.019-W26-02-10 M5460.019-W26-02-10 M5460.019-W26-02-10 M5460.019-W26-02-10

M5460.019-W26-02-10

Walter
Артикул: 8092804
В наличии
В корзину
Описание
Характеристики
ADJBY Adjustment property
0 - Adjustment not possible
APMX Depth of cut maximum
10 mm
BD Body diameter
18.001 mm
BLDA Tool style code Position A
6
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
2
CICT Cutting item count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DC Cutting diameter
19.05 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL10001035
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
1
FamilyProducts
Profile milling cutters M5460
HAND Cutting direction
R - Right
ID Technical product number
8092804
Interface codes
J6 / J61
ISO
ZYL10S1000h$06
ISYC Subclass
307-13 - Die and mold end mill
LOC-03 CCFMS Form
10
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
3 Inch with coolant
LOC-03 CZCMS Size code
1000
LOC-03 DCONMS Diameter
25.4 mm
LOC-03 TCDCONCDMS Tolerance class coded
h$06
LOC-03 ISO
ZYL10S1000h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL10001035
LPR Protruding length
76 mm
LU Usable length
18 mm
MILTTY Mill tool type ISO
L - Face and side end mill with ball nose (more then one indexable insert pro cutting edge) 90°
Name Identifying order number
M5460.019-W26-02-10
OAL Overall length
190 mm
RPMX Rotational speed maximum
12300 1/min
STDLET Standard letter to the standard number
WE
STDNO Standard
ISO3338-2
TCDCONMS ISO-tolerance class shank diameter
h6
Working process
FFO - Die milling
WT Weight of item
0.584 kg
ZEFF Face effective cutting edge count
2
ZEFP Peripheral effective cutting edge count
2
