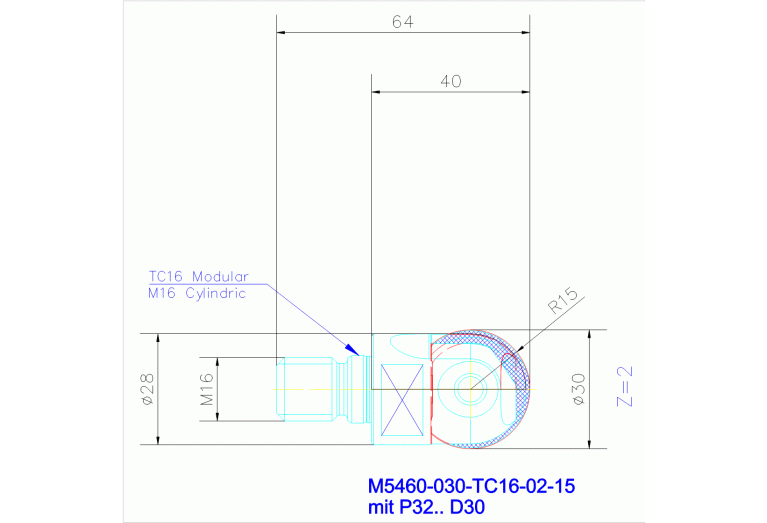

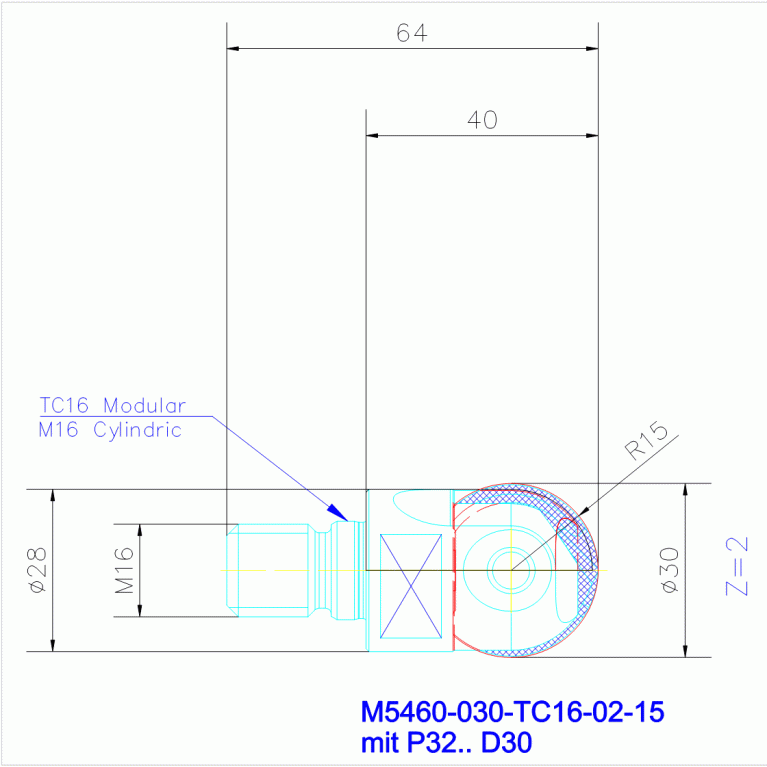

M5460-030-TC16-02-15
M5460-030-TC16-02-15
Артикул:
8092900
В наличии
Характеристики
ADJBY Adjustment property
0 - Adjustment not possible
APMX Depth of cut maximum
15 mm
BD Body diameter
28 mm
BLDA Tool style code Position A
6
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
2
CICT Cutting item count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DC Cutting diameter
30 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
SAW01600215
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
1
FamilyProducts
Profile milling cutters M5460
HAND Cutting direction
R - Right
ID Technical product number
8092900
Interface codes
J6 / J61
ISO
SAW02A0160$$$$
ISYC Subclass
307-13 - Die and mold end mill
LOC-03 CCFMS Form
02
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
SAW Screw mounting WALTER
LOC-03 CCUMS Unit base
1 Metric with coolant
LOC-03 CZCMS Size code
0160
LOC-03 DCONMS Diameter
28 mm
LOC-03 ISO
SAW02A0160$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SAW01600215
LPR Protruding length
40 mm
LS Shank length
24 mm
LU Usable length
40 mm
MILTTY Mill tool type ISO
L - Face and side end mill with ball nose (more then one indexable insert pro cutting edge) 90°
Name Identifying order number
M5460-030-TC16-02-15
OAL Overall length
64 mm
RPMX Rotational speed maximum
19300 1/min
Working process
FFO - Die milling
WT Weight of item
0.141 kg
ZEFF Face effective cutting edge count
2
ZEFP Peripheral effective cutting edge count
2
