Главная Каталог продукции Toolunited 12 307-13 - Die and mold end mill M5460-020-A20-02-10-C-L

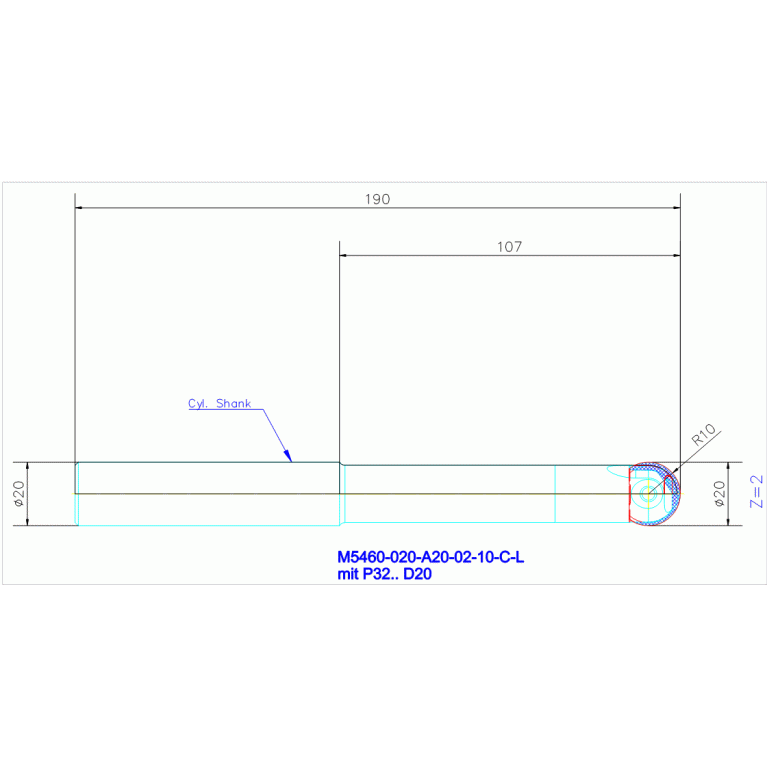

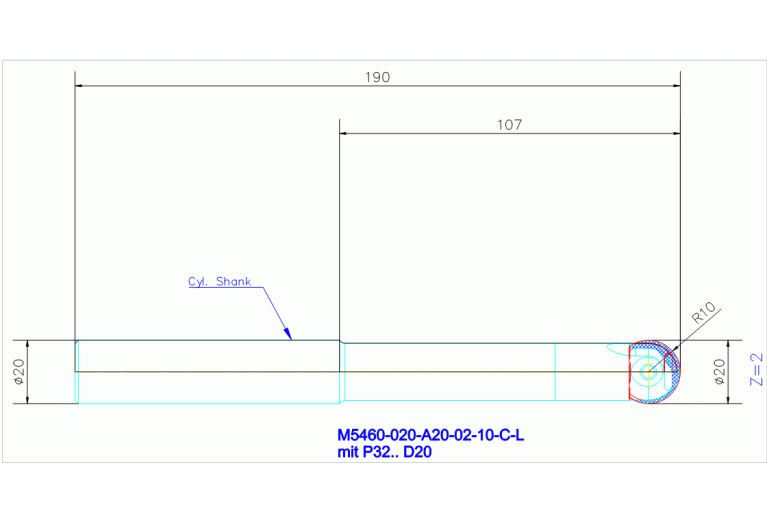

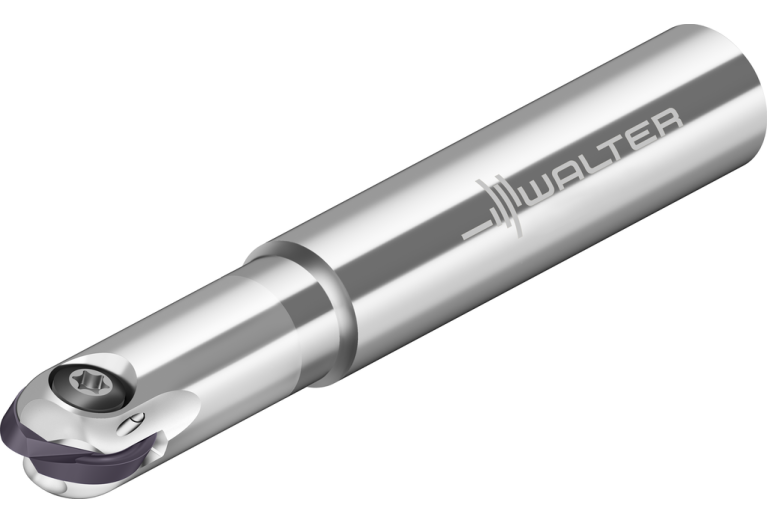

M5460-020-A20-02-10-C-L

Артикул: 8131893

В наличии

В корзину

Описание

Характеристики

ADJBY Adjustment property

0 - Adjustment not possible

APMX Depth of cut maximum

10 mm

BD Body diameter

18 mm

BLDA Tool style code Position A

BMC Body material code

H - Solid carbide

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

W - Walter

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DC Cutting diameter

20 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

ZYL02000115

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

Profile milling cutters M5460

HAND Cutting direction

R - Right

ID Technical product number

8131893

Interface codes

J6 / J61

ISO

ZYL01G2000$$$$

ISYC Subclass

307-13 - Die and mold end mill

LF Functional length

190 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

1 Metric with coolant

LOC-03 CZCMS Size code

0200

LOC-03 DCONMS Diameter

20 mm

LOC-03 ISO

ZYL01G2000$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02000115

LPR Protruding length

107 mm

LS Shank length

50 mm

LU Usable length

95.5 mm

MILTTY Mill tool type ISO

L - Face and side end mill with ball nose (more then one indexable insert pro cutting edge) 90°

Name Identifying order number

M5460-020-A20-02-10-C-L

OAL Overall length

190 mm

RPMX Rotational speed maximum

22500 1/min

Working process

FFO - Die milling

WT Weight of item

0.386 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
