Главная Каталог продукции Toolunited 12 307-02 - Non-centre cutting single row V-groove end mill M5009-040-T36-04-06-AP

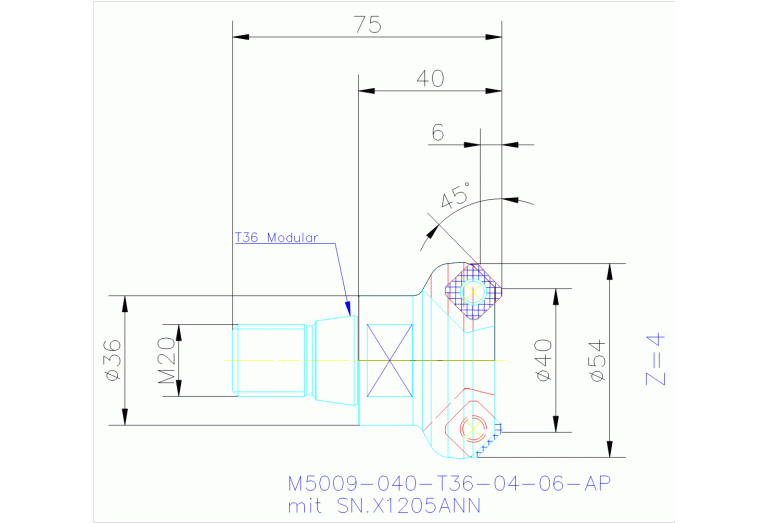

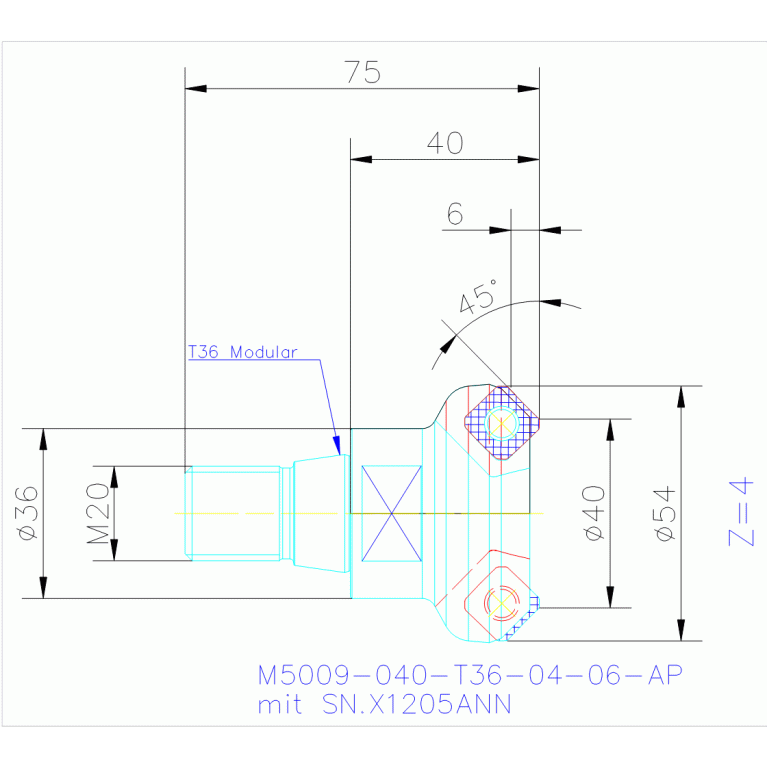

M5009-040-T36-04-06-AP

M5009-040-T36-04-06-AP M5009-040-T36-04-06-AP M5009-040-T36-04-06-AP M5009-040-T36-04-06-AP

M5009-040-T36-04-06-AP

Walter
Артикул: 7871970
В наличии
В корзину
Описание
Характеристики
ADJBY Adjustment property
0 - Adjustment not possible
APMX Depth of cut maximum
6 mm
AZ Plunge depth maximum
2 mm
BD Body diameter
54 mm
BLDA Tool style code Position A
2
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
2
CICT Cutting item count
4
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DC Cutting diameter
40 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
54 mm
Delivery state valid from
12/1/2023
DIN
SAW03600195
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
4
FamilyProducts
Face milling cutters M5009
GAMF Rake angle radial
0 Degree
GAMP Rake angle axial
0 Degree
HAND Cutting direction
R - Right
ID Technical product number
7871970
Interface codes
J6 / J61
ISO
SAW01C0360$$$$
ISYC Subclass
307-02 - Non-centre cutting single row V-groove end mill
KAPR Tool cutting edge angle
45 Degree
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
SAW Screw mounting WALTER
LOC-03 CCUMS Unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Size code
0360
LOC-03 DCONMS Diameter
36 mm
LOC-03 ISO
SAW01C0360$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SAW03600195
LPR Protruding length
40 mm
LU Usable length
40 mm
Name Identifying order number
M5009-040-T36-04-06-AP
OAL Overall length
75 mm
RMPX Ramping angle maximum
0 Degree
RPMX Rotational speed maximum
20000 1/min
Working process
FPL - Face milling
WT Weight of item
0.369 kg
ZEFF Face effective cutting edge count
4
ZEFP Peripheral effective cutting edge count
4
