Главная Каталог продукции Toolunited 12 307-02 - Non-centre cutting single row V-groove end mill M5004-040-A25-03-03

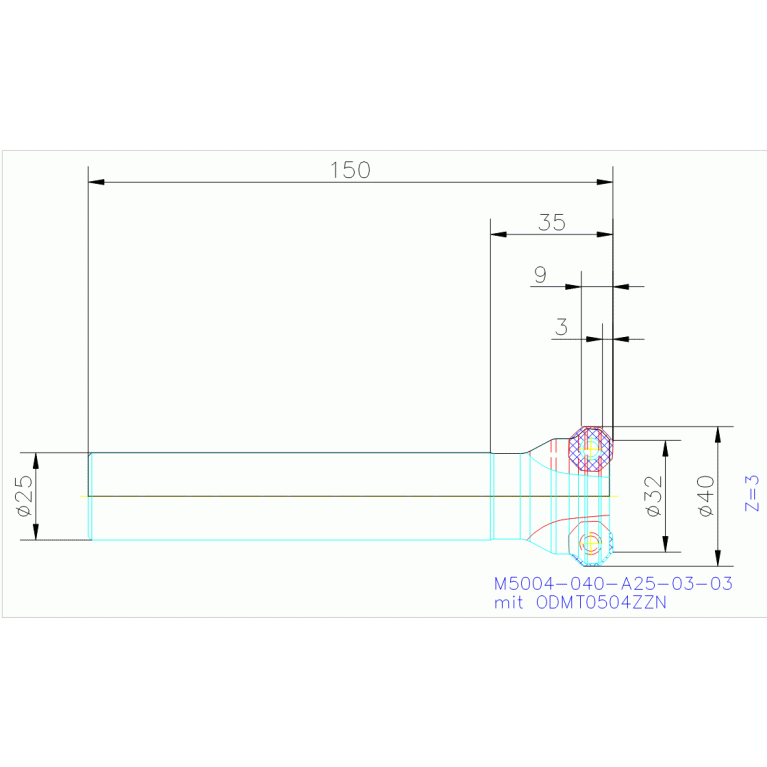

M5004-040-A25-03-03

M5004-040-A25-03-03 M5004-040-A25-03-03 M5004-040-A25-03-03 M5004-040-A25-03-03

M5004-040-A25-03-03

Walter
Артикул: 7935272
В наличии
В корзину
Описание
Характеристики
ADJBY Adjustment property
0 - Adjustment not possible
APMX Depth of cut maximum
3 mm
AZ Plunge depth maximum
1 mm
BD Body diameter
38.67 mm
BLDA Tool style code Position A
9
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
2
CICT Cutting item count
3
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DC Cutting diameter
32 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
40 mm
Delivery state valid from
12/1/2023
DIN
ZYL02500115
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
3
FamilyProducts
Octagonal face milling cutters M5004
GAMF Rake angle radial
0 Degree
GAMP Rake angle axial
0 Degree
HAND Cutting direction
R - Right
ID Technical product number
7935272
Interface codes
J6 / J61
ISO
ZYL01G2500$$$$
ISYC Subclass
307-02 - Non-centre cutting single row V-groove end mill
KAPR Tool cutting edge angle
43 Degree
LF Functional length
150 mm
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
1 Metric with coolant
LOC-03 CZCMS Size code
0250
LOC-03 DCONMS Diameter
25 mm
LOC-03 ISO
ZYL01G2500$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02500115
LPR Protruding length
35 mm
LS Shank length
56 mm
LU Usable length
35 mm
Name Identifying order number
M5004-040-A25-03-03
OAL Overall length
150 mm
RMPX Ramping angle maximum
7.8 Degree
RPMX Rotational speed maximum
26300 1/min
Working process
FPL - Face milling,FSE - Counter-sinking,FZI - Circular milling
WT Weight of item
0.545 kg
ZEFF Face effective cutting edge count
3
ZEFP Peripheral effective cutting edge count
3
