Главная Каталог продукции Toolunited 12 307-02 - Non-centre cutting single row V-groove end mill E90SO D20-6-MMT12-04

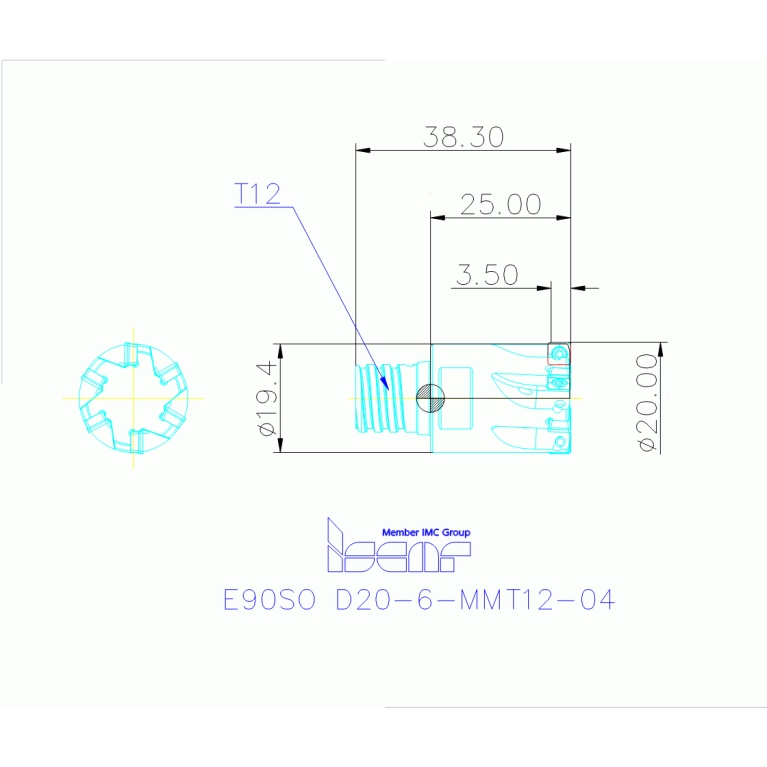

E90SO D20-6-MMT12-04

Артикул: 3350636

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

2 mm

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CICT Cutting item count

COMPC Company code

IS - Iscar

DC Cutting diameter

16 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

20 mm

Delivery state valid from

4/1/2022

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

Endmills with a MULTI-MASTER Connection Carrying Inserts for Shouldering and Fast Feed Applications

HAND Cutting direction

R - Right

ID Technical product number

3350636

Interface codes

ISYC Subclass

307-02 - Non-centre cutting single row V-groove end mill

KAPR Tool cutting edge angle

15 Degree

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SAI Screw mounting ISCAR

LOC-03 CCUMS Connection code unit base

8 non-dimensional size

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LPR Protruding length

25 mm

Name Identifying order number

E90SO D20-6-MMT12-04

OAL Overall length

38.8 mm

RMPX Ramping angle maximum

1 Degree

Working process

No working processes available

WT Weight of item

0.08 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
