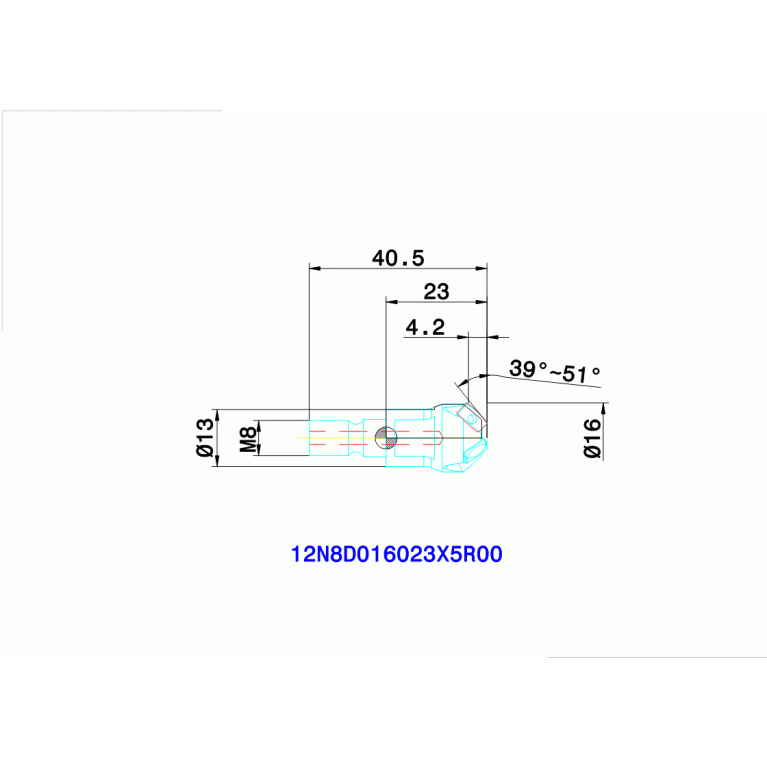

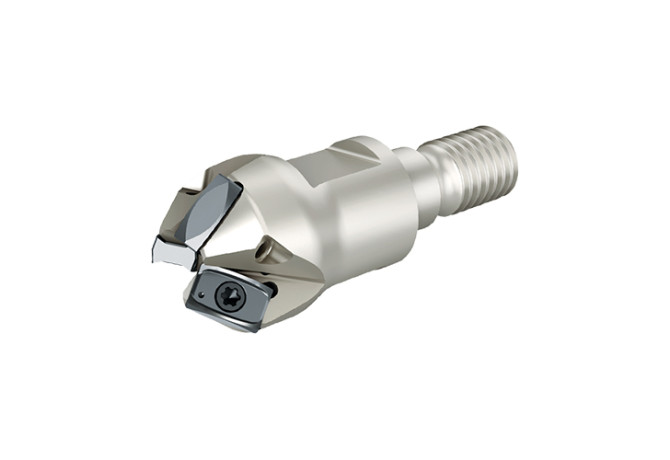

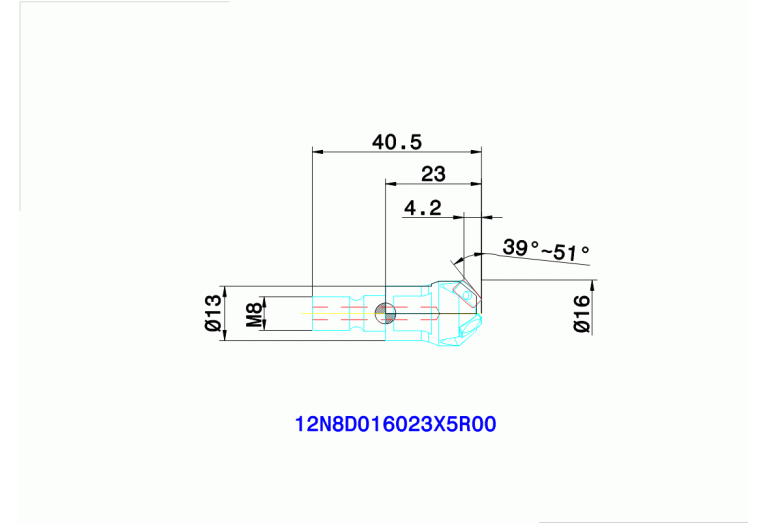

Главная Каталог продукции Toolunited 12 307-02 - Non-centre cutting single row V-groove end mill 12N8D016023X5R00

12N8D016023X5R00

Артикул: 6247427

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

1.2 mm

BD Body diameter

16 mm

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IL - Ingersoll

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DC Cutting diameter

7 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

10/15/2023

DIN

SAD00800115

DN Neck diameter

13 mm

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

Copy End Mill for finishing 12N8D...X

HAND Cutting direction

R - Right

ID Technical product number

6247427

Interface codes

J6 /

ISYC Subclass

307-02 - Non-centre cutting single row V-groove end mill

KAPR Tool cutting edge angle

39 Degree

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SAD Screw mounting

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0080

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SAD00800115

LPR Protruding length

23 mm

Name Identifying order number

12N8D016023X5R00

OAL Overall length

40.5 mm

THSZMS Connection thread nominal size machine side

Working process

FEC - Square shoulder milling

WT Weight of item

0.085 kg

ZEFP Peripheral effective cutting edge count
