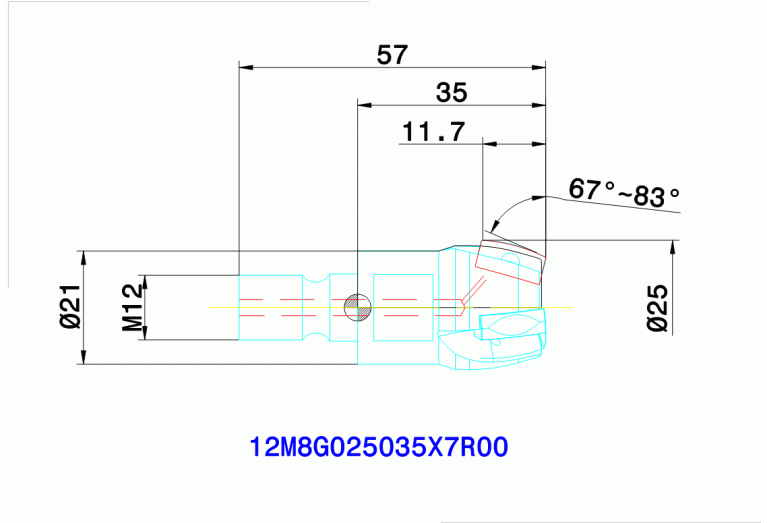

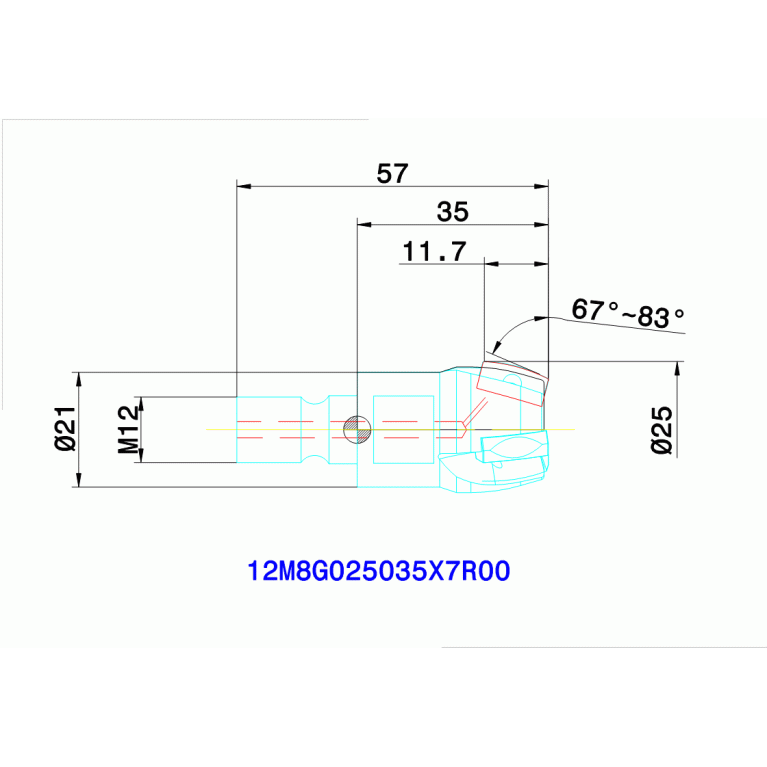

Главная Каталог продукции Toolunited 12 307-02 - Non-centre cutting single row V-groove end mill 12M8G025035X7R00

12M8G025035X7R00

Артикул: 6247431

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

1.5 mm

BD Body diameter

25 mm

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IL - Ingersoll

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DC Cutting diameter

22.8 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

10/15/2023

DIN

SAD01200115

DN Neck diameter

21 mm

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

Copy End Mill for finishing 12M8G...X

HAND Cutting direction

R - Right

ID Technical product number

6247431

Interface codes

J6 /

ISYC Subclass

307-02 - Non-centre cutting single row V-groove end mill

KAPR Tool cutting edge angle

67 Degree

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SAD Screw mounting

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0120

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SAD01200115

LPR Protruding length

35 mm

Name Identifying order number

12M8G025035X7R00

OAL Overall length

57 mm

THSZMS Connection thread nominal size machine side

M12

Working process

FEC - Square shoulder milling

WT Weight of item

0.155 kg

ZEFP Peripheral effective cutting edge count
