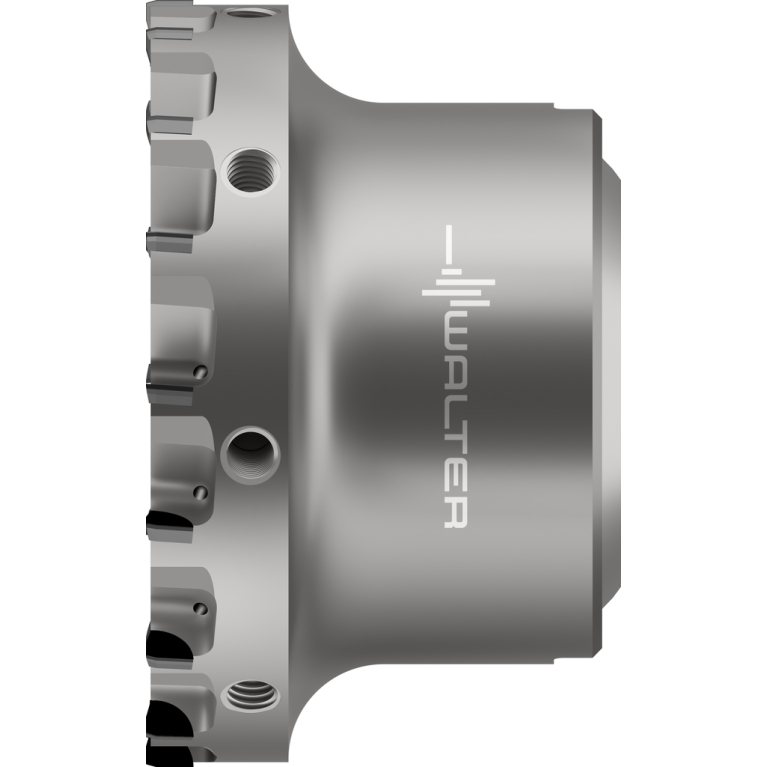

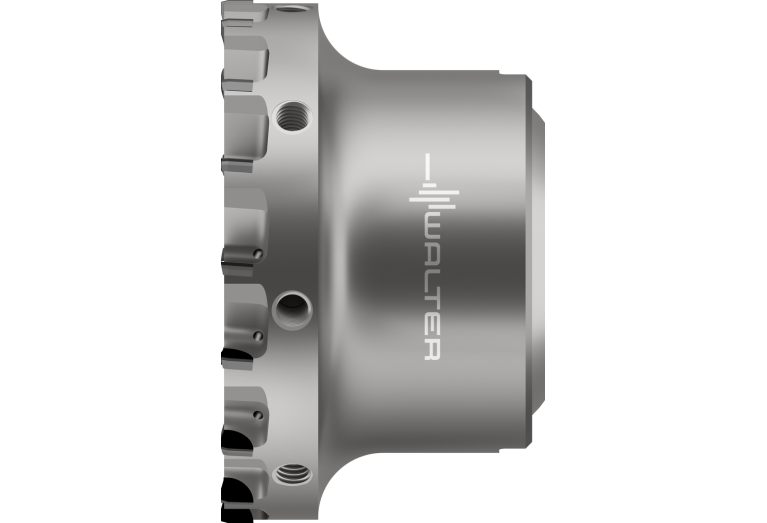

MP060-080B16P WDN20

Артикул: 7939000

В наличии

В корзину

Описание

Характеристики

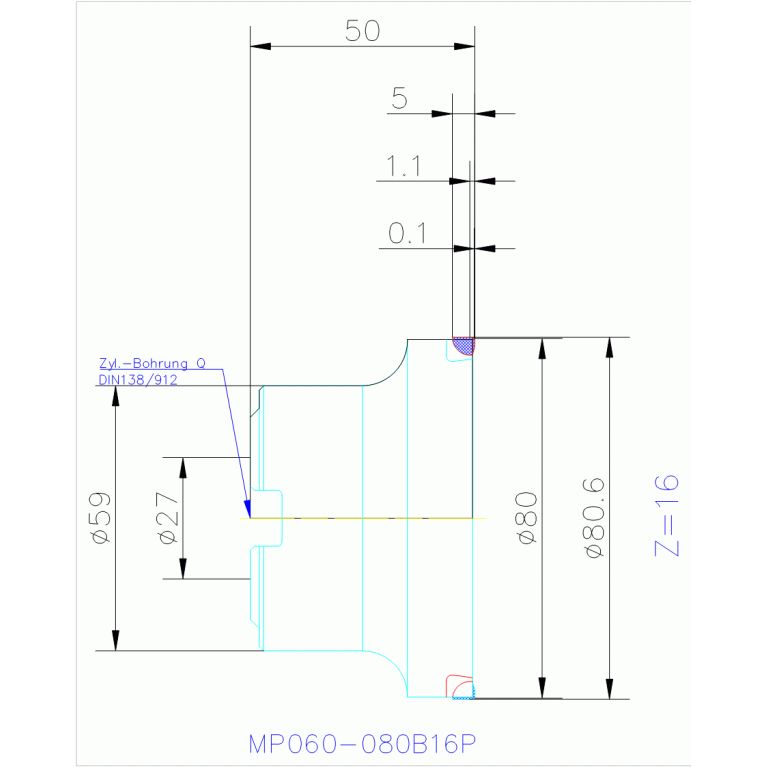

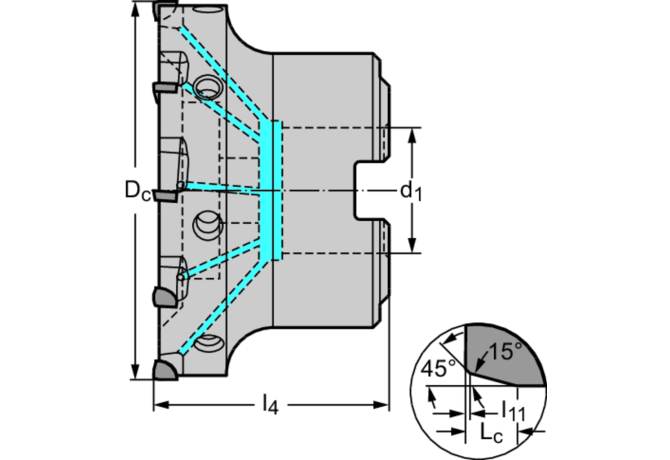

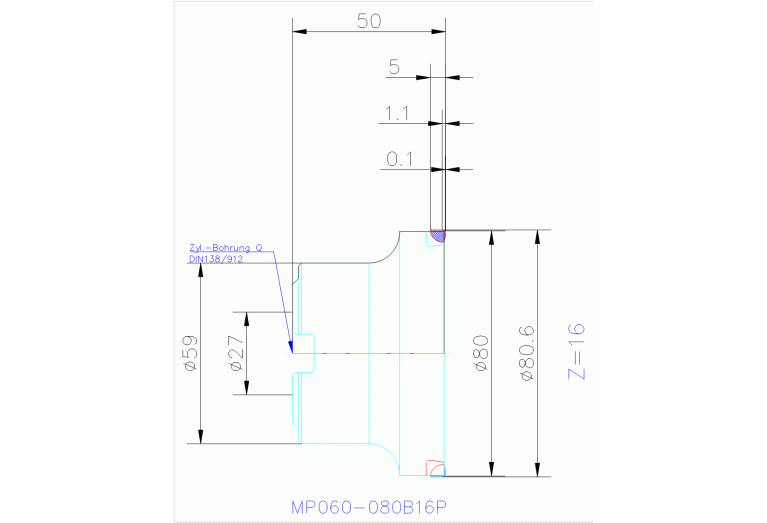

BD Body diameter

79.6 mm

BMC Body material code

S - Solid steel

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COATN Coating

PKD

COMPC Company code

W - Walter

CWN Cutting width minimum

5 mm

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DC Cutting diameter

80.6 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

FDA02701210

F71 Number of corner designs

FamilyProducts

PCD face milling cutters MP060

FHA Flute helix angle

4 Degree

FHH Flute helix hand

R - Hand of helix right

GAMF Rake angle radial

0 Degree

GAMP Rake angle axial

4 Degree

GRDMFG Grade manufacturers designation

WDN20

HAND Cutting direction

R - Right

ID Technical product number

7939000

Interface codes

J6 / J61

ISO

FDA12G2700$$$$

ISYC Subclass

304-02 - Shell mill

LOC-03 CCFMS Form

LOC-03 CCSMS Style

0 Hole in machine direction or shaft in workpiece direction

LOC-03 CCTMS Type

FDA Milling arbor mounting

LOC-03 CCUMS Unit base

1 Metric with coolant

LOC-03 CZCMS Size code

0270

LOC-03 DCONMS Diameter

27 mm

LOC-03 ISO

FDA12G2700$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA02701210

Materials

N,O

Name Identifying order number

MP060-080B16P WDN20

OAW Overall width

50 mm

RPMX Rotational speed maximum

20000 1/min

STDLET Standard letter to the standard number

STDNO Standard

ISO6462

Working process

FEC - Square shoulder milling,FNU - Groove milling,FPL - Face milling

WT Weight of item

0.951 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
