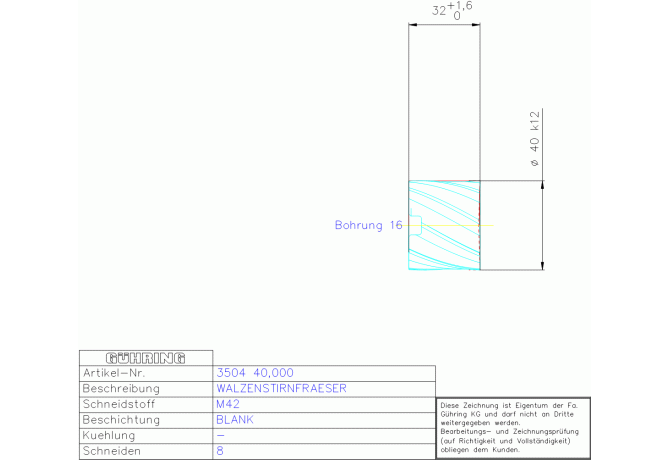

Главная Каталог продукции Toolunited 12 304-02 - Shell mill 3504 40.000

3504 40.000

Артикул: 9035040400000

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

OHNE

COMPC Company code

GG - Gühring

CRCLDIN Chip removal class

CWN Cutting width minimum

32 mm

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

40 mm

DCONMSUD Shank diameter upper limit

0.018 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

FDA01601300

F71 Number of corner designs

FamilyProducts

M42 WALZENSTIRNFR, 40,000 DIN 1880RN TYP

FHA Flute helix angle

30 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

224 mm

GAMF Rake angle radial

30 Degree

GAMP Rake angle axial

11 Degree

GRD2ND Standard designation of the grade 2nd application

M42

GRDMFG Grade manufacturers designation

M42

GRDPRIO Standard designation of the grade main application

HSS-E

HAND Cutting direction

R - Right

ID Technical product number

9035040400000

Interface codes

J6 /

ISYC Subclass

304-02 - Shell mill

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

0 Hole in machine direction or shaft in workpiece direction

LOC-03 CCTMS Connection code type

FDA Milling arbor mounting

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0160

LOC-03 DCONMS Diameter

16 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA01601300

MILTTY Mill tool type ISO

G - Side end mill (one or more indexable insert pro cutting edge) 90°

Name Identifying order number

3504 40.000

OAW Overall width

32 mm

STDNO Standard

DIN1880

Working process

FWA - Hob

WT Weight of item

0.153 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
