Главная Каталог продукции Toolunited 12 308-02 - Shoulder milling cutter WWX200UR2.5005CA

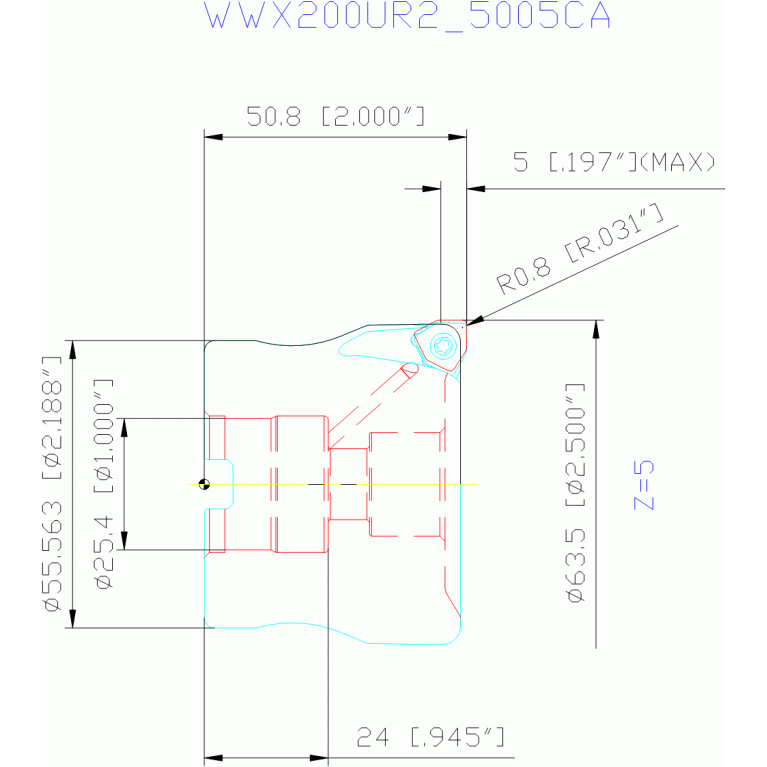

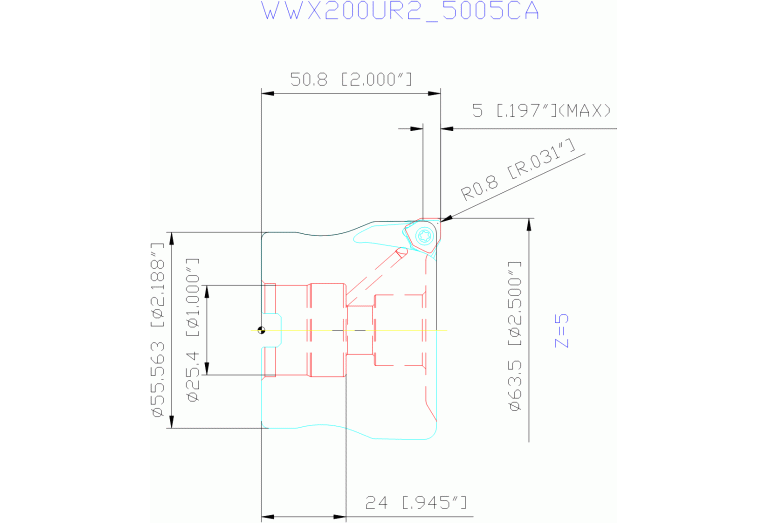

WWX200UR2.5005CA

WWX200UR2.5005CA WWX200UR2.5005CA WWX200UR2.5005CA WWX200UR2.5005CA

WWX200UR2.5005CA

Mitsubishi Materials
Артикул: 22863997
В наличии
В корзину
Описание
Характеристики
BD Body diameter
61.9 mm
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
2
CDX Cutting depth maximum
0.197 mm
CICT Cutting item count
5
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
MI - Mitsubishi Materials
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DC Cutting diameter
63.5 mm
Delivery state valid from
8/1/2023
DHUB Hub diameter
55.575 mm
DIN
FDA10002230
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
5
FamilyProducts
General purpose double sided insert type shoulder mill features low cutting resistance
GAMF Rake angle radial
-6 Degree
GAMP Rake angle axial
-12 Degree
HAND Cutting direction
R - Right
ID Technical product number
22863997
Interface codes
J6 / J61
ISO
FDA22S1000$$$$
ISYC Subclass
308-02 - Shoulder milling cutter
KAPR Tool cutting edge angle
90 Degree
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
3 Inch with coolant
LOC-03 CZCMS Connection size code
1000
LOC-03 DCONMS Diameter
25.4 mm
LOC-03 ISO
FDA22S1000$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA10002230
Name Identifying order number
WWX200UR2.5005CA
OAL Overall length
50.8 mm
RPMX Rotational speed maximum
16000 1/min
Working process
No working processes available
WT Weight of item
0.771 kg
ZEFF Face effective cutting edge count
5
ZEFP Peripheral effective cutting edge count
5
