Главная Каталог продукции Toolunited 12 308-02 - Shoulder milling cutter WWX200-160C16NR

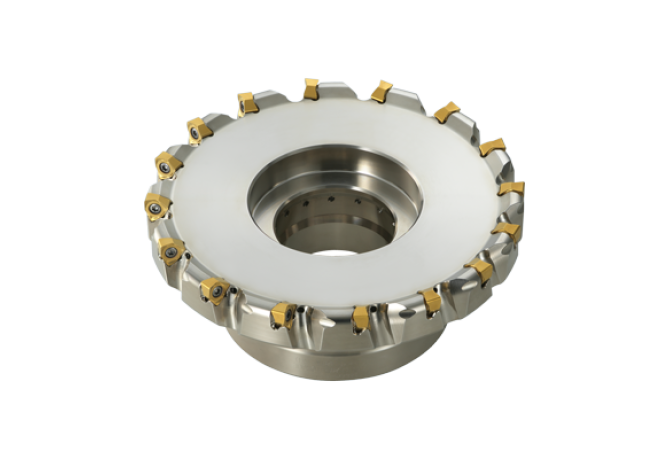

WWX200-160C16NR

WWX200-160C16NR WWX200-160C16NR WWX200-160C16NR

WWX200-160C16NR

Mitsubishi Materials
Артикул: 22864963
В наличии
В корзину
Описание
Характеристики

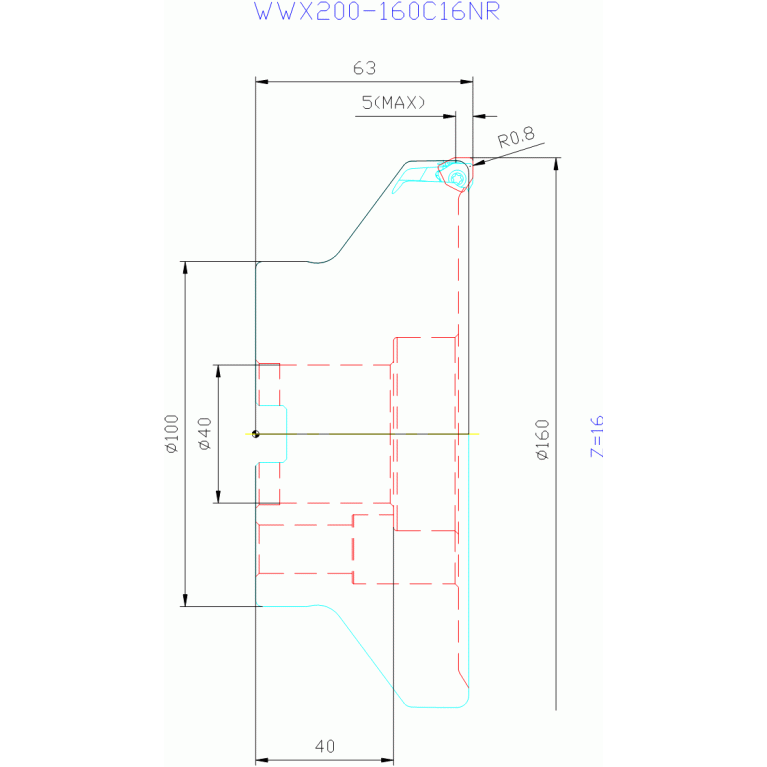

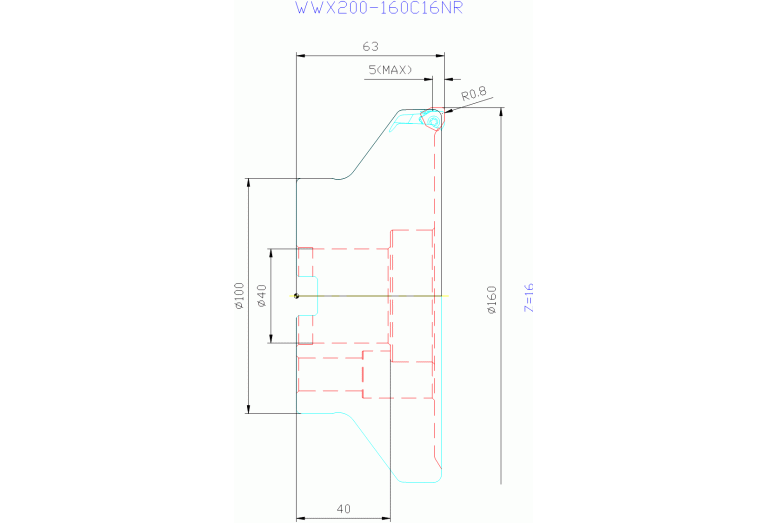

BD Body diameter
158.4 mm
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
2
CDX Cutting depth maximum
5 mm
CICT Cutting item count
16
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
MI - Mitsubishi Materials
CXSC Coolant exit style code
0 - Without coolant exit
DBC diameter bolt circle 2
66.7 mm
DC Cutting diameter
160 mm
Delivery state valid from
8/1/2023
DHUB Hub diameter
100 mm
DIN
FDA04002200
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
16
FamilyProducts
General purpose double sided insert type shoulder mill features low cutting resistance
GAMF Rake angle radial
-6 Degree
GAMP Rake angle axial
-12 Degree
HAND Cutting direction
R - Right
ID Technical product number
22864963
Interface codes
J6 / J61
ISO
FDA22G4000$$$$
ISYC Subclass
308-02 - Shoulder milling cutter
KAPR Tool cutting edge angle
90 Degree
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0400
LOC-03 DCONMS Diameter
40 mm
LOC-03 ISO
FDA22G4000$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA04002200
Name Identifying order number
WWX200-160C16NR
OAL Overall length
63 mm
RPMX Rotational speed maximum
8600 1/min
Working process
No working processes available
WT Weight of item
4.55 kg
ZEFF Face effective cutting edge count
16
ZEFP Peripheral effective cutting edge count
16
