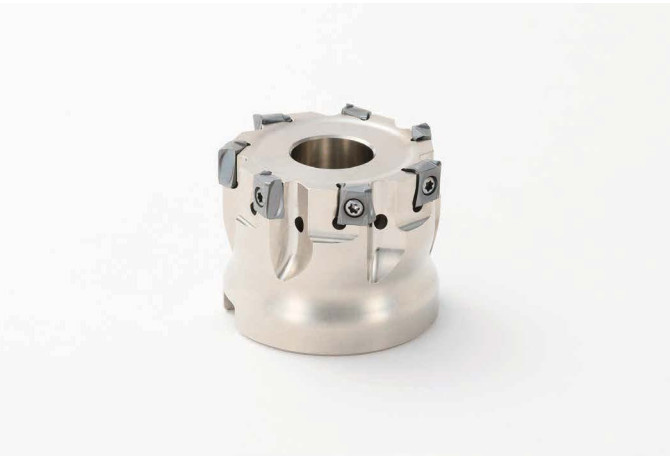

Главная Каталог продукции Toolunited 12 308-02 - Shoulder milling cutter MA90-080R-12T7C

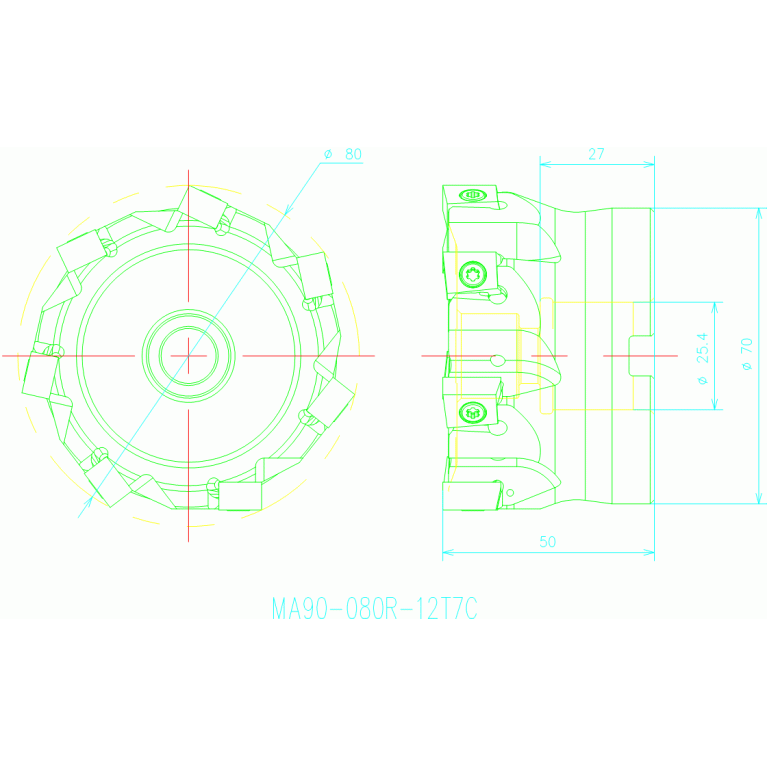

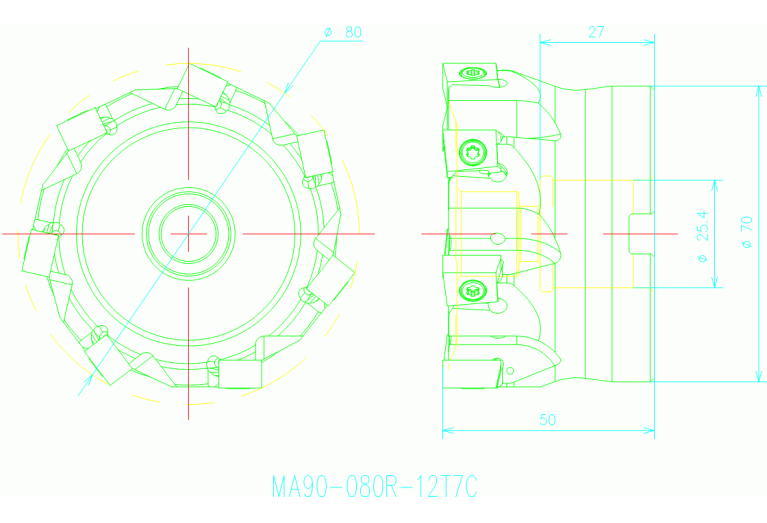

MA90-080R-12T7C

MA90-080R-12T7C MA90-080R-12T7C MA90-080R-12T7C MA90-080R-12T7C

MA90-080R-12T7C

Kyocera
Артикул: THN08753
В наличии
В корзину
Описание
Характеристики
A1A Cutting edge angle major Pos. A
90 Degree
A2A Clearance angle major Pos. A
0 Degree
ADJBY Adjustment property
0 - Adjustment not possible
B1A Cutting edge length Pos. A
13.28 mm
B2A Insert width Pos. A
6.6 mm
B3A Inscribed circle diameter Pos. A
6.6 mm
BD Body diameter
77.5 mm
BLDA Tool style code Position A
4
BMC Body material code
S - Solid steel
C1A Insert thickness Pos. A
10.04 mm
CCONMS Connection count machine side
1
CDX Cutting depth maximum
12 mm
CICT Cutting item count
7
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
KYO - Kyocera
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
D1A Corner radius Pos. A
0.8 mm
DC Cutting diameter
80 mm
DCCB Counterbore diameter connection bore
20 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
4/21/2023
DHUB Hub diameter
70 mm
DIN
FDA10002230
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
7
FamilyProducts
MA90 Tangential 90° Mill
HAND Cutting direction
R - Right
ID Technical product number
THN08753
Interface codes
J6 /
ISISO A Indicator for ISO cutting plate Pos.A
0
ISYC Subclass
308-02 - Shoulder milling cutter
KAPR Tool cutting edge angle
90 Degree
LCCB Counterbore depth connection bore
7 mm
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
3 Inch with coolant
LOC-03 CZCMS Connection size code
1000
LOC-03 DCONMS Diameter
25.4 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA10002230
MILTTY Mill tool type ISO
A - Face milling cutter shoulder cutter peripheral
MTP Clamping type code
S - Screwed across bore with, counter bore
Name Identifying order number
MA90-080R-12T7C
OAL Overall length
50 mm
RPMX Rotational speed maximum
10400 1/min
THUB hub thickness
10 mm
Working process
No working processes available
WT Weight of item
1.2 kg
ZEFF Face effective cutting edge count
7
ZEFP Peripheral effective cutting edge count
7
