Главная Каталог продукции Toolunited 12 308-02 - Shoulder milling cutter MA90-080R-12T10C

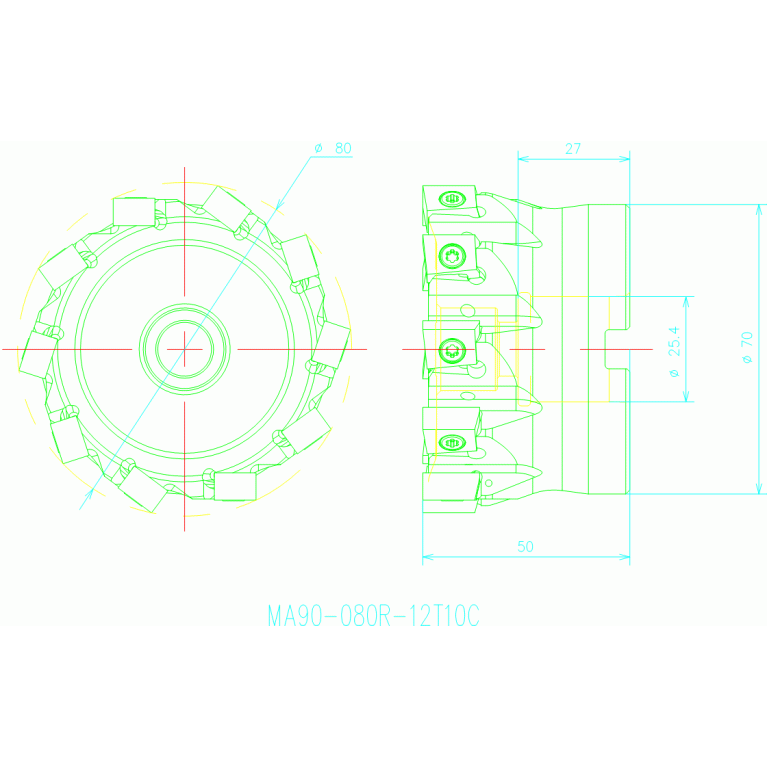

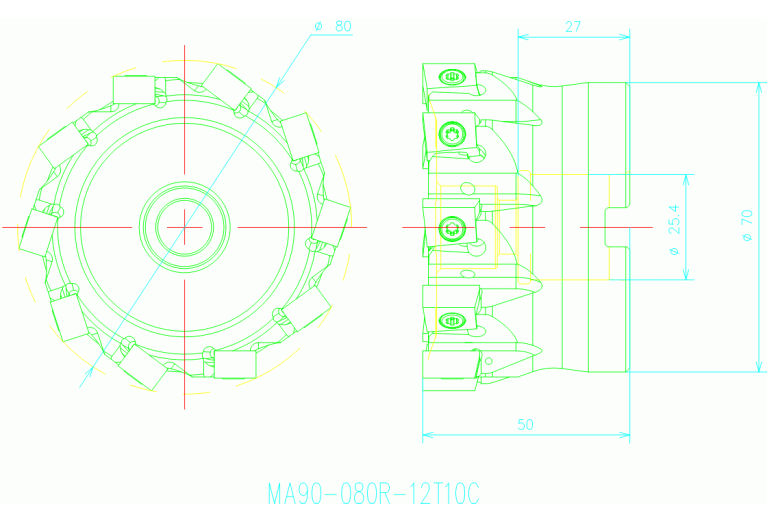

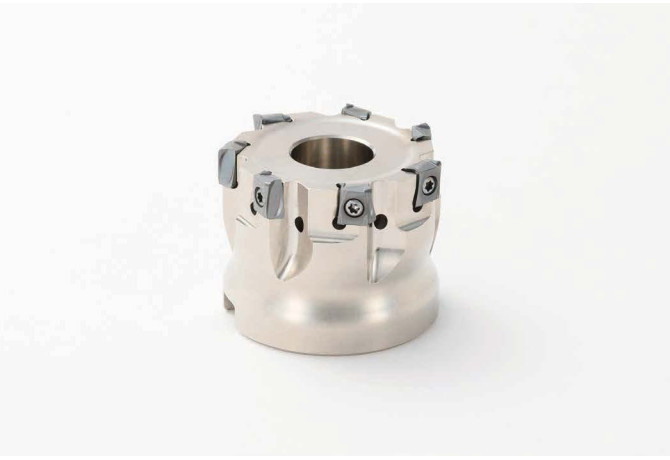

MA90-080R-12T10C

MA90-080R-12T10C MA90-080R-12T10C MA90-080R-12T10C MA90-080R-12T10C

MA90-080R-12T10C

Kyocera
Артикул: THN08754
В наличии
В корзину
Описание
Характеристики
A1A Cutting edge angle major Pos. A
90 Degree
A2A Clearance angle major Pos. A
0 Degree
ADJBY Adjustment property
0 - Adjustment not possible
B1A Cutting edge length Pos. A
13.28 mm
B2A Insert width Pos. A
6.6 mm
B3A Inscribed circle diameter Pos. A
6.6 mm
BD Body diameter
77.5 mm
BLDA Tool style code Position A
4
BMC Body material code
S - Solid steel
C1A Insert thickness Pos. A
10.04 mm
CCONMS Connection count machine side
1
CDX Cutting depth maximum
12 mm
CICT Cutting item count
10
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
KYO - Kyocera
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
D1A Corner radius Pos. A
0.8 mm
DC Cutting diameter
80 mm
DCCB Counterbore diameter connection bore
20 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
4/21/2023
DHUB Hub diameter
70 mm
DIN
FDA10002230
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
10
FamilyProducts
MA90 Tangential 90° Mill
HAND Cutting direction
R - Right
ID Technical product number
THN08754
Interface codes
J6 /
ISISO A Indicator for ISO cutting plate Pos.A
0
ISYC Subclass
308-02 - Shoulder milling cutter
KAPR Tool cutting edge angle
90 Degree
LCCB Counterbore depth connection bore
10 mm
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
3 Inch with coolant
LOC-03 CZCMS Connection size code
1000
LOC-03 DCONMS Diameter
25.4 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA10002230
MILTTY Mill tool type ISO
A - Face milling cutter shoulder cutter peripheral
MTP Clamping type code
S - Screwed across bore with, counter bore
Name Identifying order number
MA90-080R-12T10C
OAL Overall length
50 mm
RPMX Rotational speed maximum
10400 1/min
THUB hub thickness
10 mm
Working process
No working processes available
WT Weight of item
1.2 kg
ZEFF Face effective cutting edge count
10
ZEFP Peripheral effective cutting edge count
10
