Главная Каталог продукции Toolunited 12 308-02 - Shoulder milling cutter EMP09-160-B40-LN12-12C

EMP09-160-B40-LN12-12C

EMP09-160-B40-LN12-12C

Артикул: EMP09-160-B40-LN12-12C

В наличии

В корзину

Описание

Характеристики

A1A Cutting edge angle major Pos. A

90 Degree

A2A Clearance angle major Pos. A

0 Degree

B1A Cutting edge length Pos. A

12.7 mm

B2A Insert width Pos. A

13 mm

B3A Inscribed circle diameter Pos. A

13 mm

BLDA Tool style code Position A

4

C1A Insert thickness Pos. A

6.75 mm

CCONMS Connection count machine side

1

CDX Cutting depth maximum

11.5 mm

CICT Cutting item count

12

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

ZCC - ZCC Cutting Tools

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

D1A Corner radius Pos. A

0.4 mm

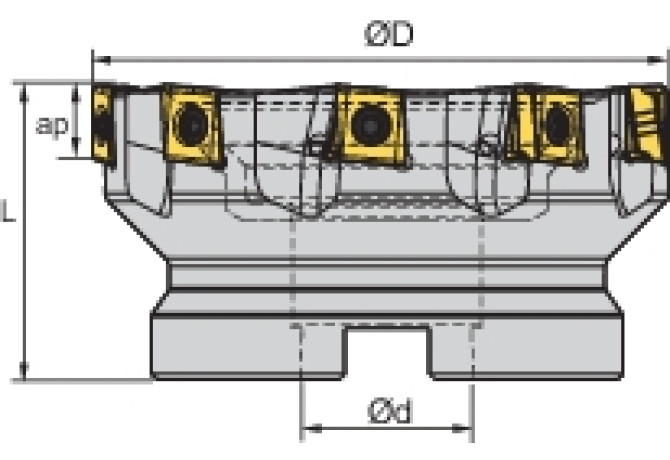

DC Cutting diameter

160 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

8/1/2024

DIN

FDA04001210

F23 Number of mounting layers

1

F24 Cutting item count per mounting layer

12

FamilyProducts

Square shoulder mill

HAND Cutting direction

R - Right

ID Identifying order number

EMP09-160-B40-LN12-12C

Interface codes

J6 /

ISISO A Indicator for ISO cutting plate Pos.A

0

ISYC Subclass

308-02 - Shoulder milling cutter

KAPR Tool cutting edge angle

90 Degree

LOC-03 CCFMS Form

12

LOC-03 CCSMS Style

0 Hole in machine direction or shaft in workpiece direction

LOC-03 CCTMS Type

FDA Milling arbor mounting

LOC-03 CCUMS Unit base

1 Metric with coolant

LOC-03 CZCMS Size code

0400

LOC-03 DCONMS Diameter

40 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA04001210

MTP Clamping type code

S - Screwed across bore with, counter bore

OAL Overall length

63 mm

Working process

FEC - Square shoulder milling,FPL - Face milling

ZEFF Face effective cutting edge count

12

ZEFP Peripheral effective cutting edge count

12
