Главная Каталог продукции Toolunited 12 308-01 - Face milling cutter MFSE45200R-8T-M

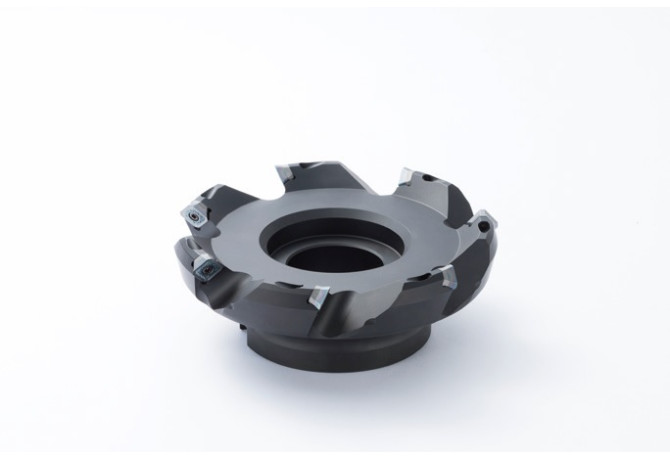

MFSE45200R-8T-M

MFSE45200R-8T-M MFSE45200R-8T-M MFSE45200R-8T-M MFSE45200R-8T-M

MFSE45200R-8T-M

Kyocera
Артикул: THN08601
В наличии
В корзину
Описание
Характеристики
A1A Cutting edge angle major Pos. A
90 Degree
A2A Clearance angle major Pos. A
20 Degree
ADJBY Adjustment property
0 - Adjustment not possible
B1A Cutting edge length Pos. A
13.4 mm
B3A Inscribed circle diameter Pos. A
13.4 mm
BD Body diameter
209.5 mm
BLDA Tool style code Position A
2
BMC Body material code
S - Solid steel
C1A Insert thickness Pos. A
3.97 mm
CCONMS Connection count machine side
1
CDX Cutting depth maximum
6 mm
CICT Cutting item count
8
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
KYO - Kyocera
CXSC Coolant exit style code
0 - Without coolant exit
D4A Cutting edge angle major Pos. A
45 Degree
D6A Wiper edge length Pos. A
2.1 mm
DC Cutting diameter
200 mm
DCCB Counterbore diameter connection bore
100 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
208.7 mm
Delivery state valid from
12/1/2020
DHUB Hub diameter
142 mm
DIN
FDA06001200
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
8
FamilyProducts
MFSE45 Lead Angle 45°Milling Cutter
GAMF Rake angle radial
-11.5 Degree
GAMP Rake angle axial
22 Degree
HAND Cutting direction
R - Right
ID Technical product number
THN08601
Interface codes
J6 /
ISISO A Indicator for ISO cutting plate Pos.A
0
ISYC Subclass
308-01 - Face milling cutter
KAPR Tool cutting edge angle
45 Degree
LCCB Counterbore depth connection bore
27.5 mm
LOC-03 CCFMS Connection code form
12
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0600
LOC-03 DCONMS Diameter
60 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA06001200
MILTTY Mill tool type ISO
A - Face milling cutter shoulder cutter peripheral
MTP Clamping type code
S - Screwed across bore with, counter bore
Name Identifying order number
MFSE45200R-8T-M
OAL Overall length
63 mm
RPMX Rotational speed maximum
8100 1/min
THUB hub thickness
15 mm
Working process
FPL - Face milling
WT Weight of item
7 kg
ZEFF Face effective cutting edge count
8
ZEFP Peripheral effective cutting edge count
8
