Главная Каталог продукции Toolunited 12 308-01 - Face milling cutter MB45-315R-14T18

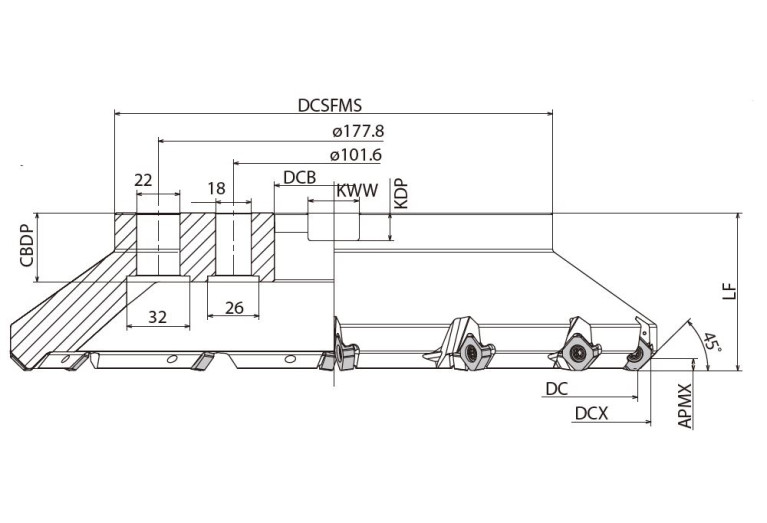

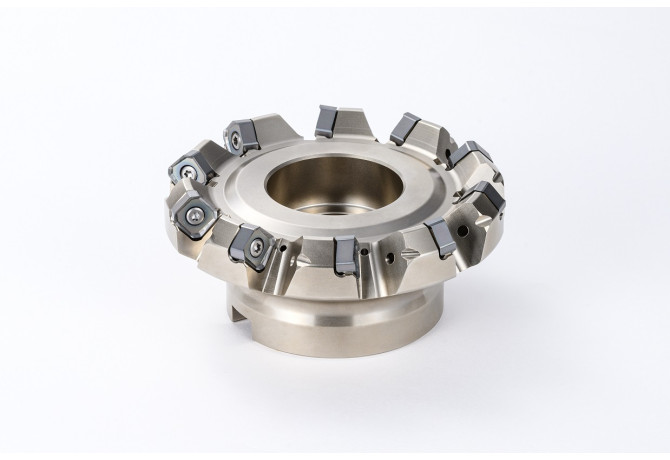

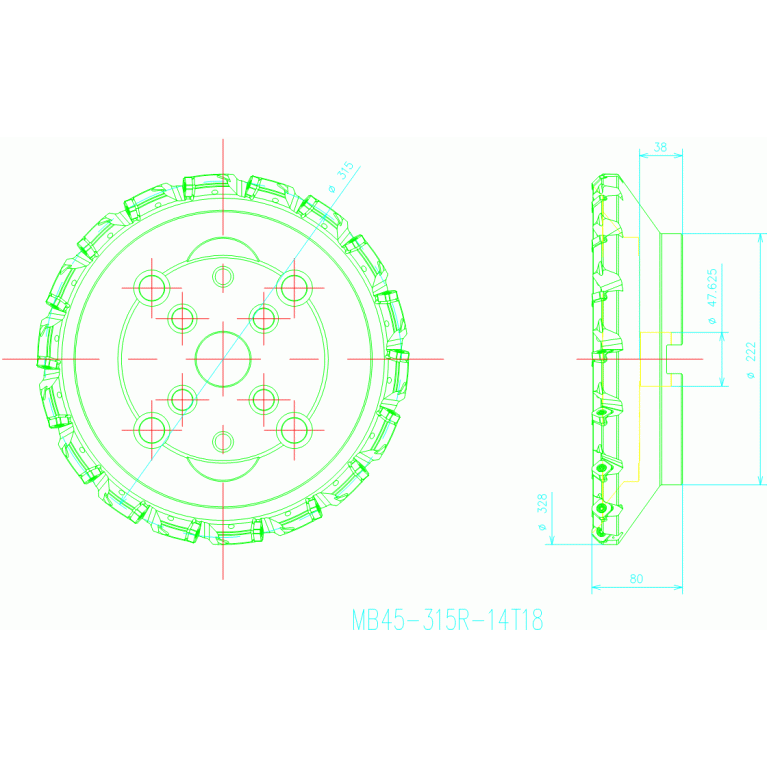

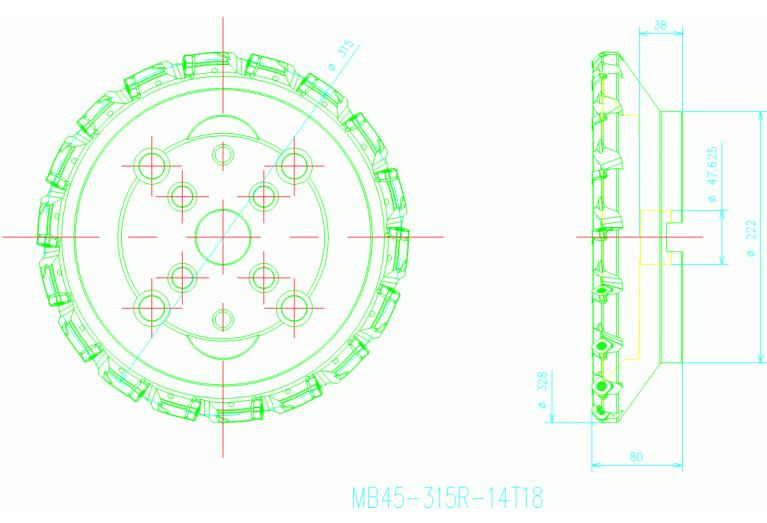

MB45-315R-14T18

MB45-315R-14T18

MB45-315R-14T18

MB45-315R-14T18

MB45-315R-14T18

MB45-315R-14T18

MB45-315R-14T18

Kyocera

Артикул: THN08822

В наличии

В корзину

Описание

Характеристики

A1A Cutting edge angle major Pos. A

90 Degree

A2A Clearance angle major Pos. A

0 Degree

ADJBY Adjustment property

0 - Adjustment not possible

B1A Cutting edge length Pos. A

14.7 mm

B3A Inscribed circle diameter Pos. A

14.7 mm

BD Body diameter

327.5 mm

BLDA Tool style code Position A

2

BMC Body material code

S - Solid steel

C1A Insert thickness Pos. A

6.07 mm

CCONMS Connection count machine side

1

CDX Cutting depth maximum

6 mm

CICT Cutting item count

18

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

KYO - Kyocera

CXSC Coolant exit style code

0 - Without coolant exit

D2A Corner chamfer length Pos. A

0.8 mm

D3A Corner chamfer angle Pos. A

22.5 Degree

D4A Cutting edge angle major Pos. A

45 Degree

D6A Wiper edge length Pos. A

2.3 mm

DC Cutting diameter

315 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

328 mm

Delivery state valid from

4/21/2023

DHUB Hub diameter

222 mm

DIN

FDA18751220

F23 Number of mounting layers

1

F24 Cutting item count per mounting layer

18

FamilyProducts

MB45 Lead Angle 45°Milling Cutter

GAMF Rake angle radial

-7 Degree

GAMP Rake angle axial

-12 Degree

HAND Cutting direction

R - Right

ID Technical product number

THN08822

Interface codes

J6 /

ISISO A Indicator for ISO cutting plate Pos.A

0

ISYC Subclass

308-01 - Face milling cutter

KAPR Tool cutting edge angle

45 Degree

LCCB Counterbore depth connection bore

18 mm

LOC-03 CCFMS Connection code form

12

LOC-03 CCSMS Connection code style

0 Hole in machine direction or shaft in workpiece direction

LOC-03 CCTMS Connection code type

FDA Milling arbor mounting

LOC-03 CCUMS Connection code unit base

2 Inch

LOC-03 CZCMS Connection size code

1875

LOC-03 DCONMS Diameter

47.625 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA18751220

MILTTY Mill tool type ISO

A - Face milling cutter shoulder cutter peripheral

MTP Clamping type code

S - Screwed across bore with, counter bore

Name Identifying order number

MB45-315R-14T18

OAL Overall length

80 mm

RPMX Rotational speed maximum

4500 1/min

THUB hub thickness

19.4 mm

Working process

No working processes available

WT Weight of item

20.226 kg

ZEFF Face effective cutting edge count

18

ZEFP Peripheral effective cutting edge count

18
