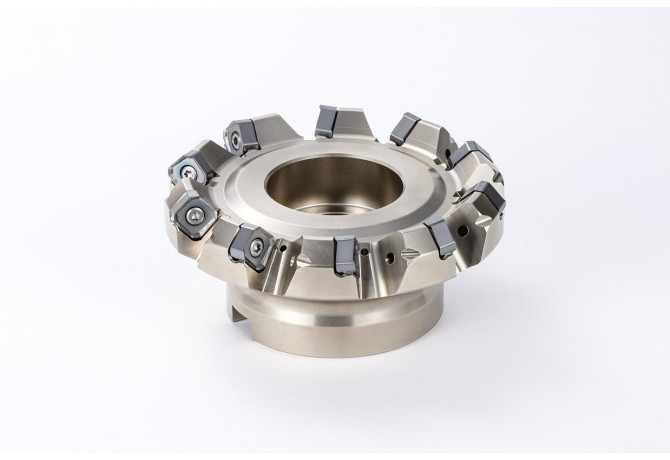

Главная Каталог продукции Toolunited 12 308-01 - Face milling cutter MB45-100R-14T10C-M

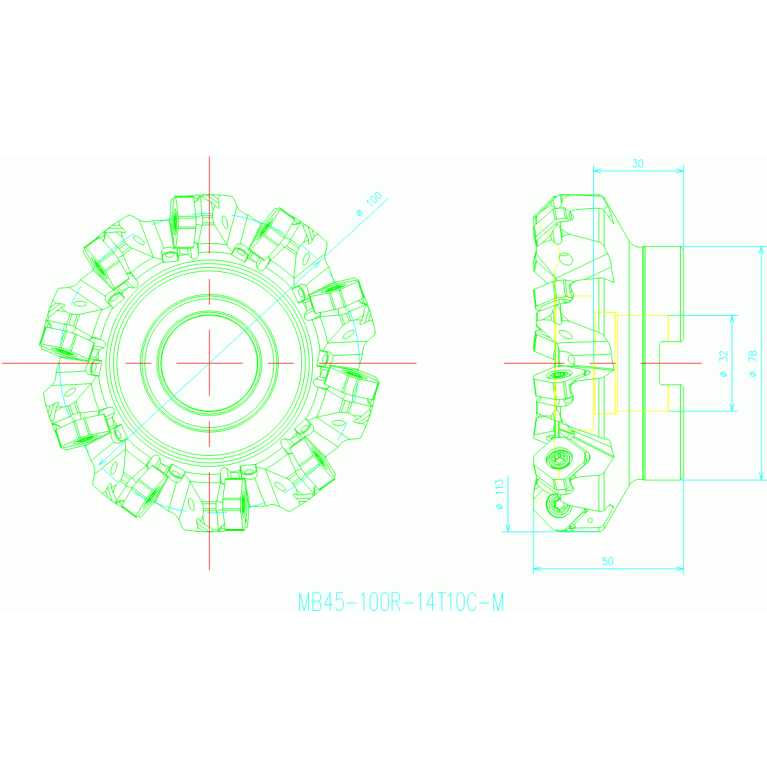

MB45-100R-14T10C-M

MB45-100R-14T10C-M MB45-100R-14T10C-M MB45-100R-14T10C-M MB45-100R-14T10C-M

MB45-100R-14T10C-M

Kyocera
Артикул: THN08853
В наличии
В корзину
Описание
Характеристики
A1A Cutting edge angle major Pos. A
90 Degree
A2A Clearance angle major Pos. A
0 Degree
ADJBY Adjustment property
0 - Adjustment not possible
B1A Cutting edge length Pos. A
14.7 mm
B3A Inscribed circle diameter Pos. A
14.7 mm
BD Body diameter
112.5 mm
BLDA Tool style code Position A
2
BMC Body material code
S - Solid steel
C1A Insert thickness Pos. A
6.07 mm
CCONMS Connection count machine side
1
CDX Cutting depth maximum
6 mm
CICT Cutting item count
10
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
KYO - Kyocera
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
D2A Corner chamfer length Pos. A
0.8 mm
D3A Corner chamfer angle Pos. A
22.5 Degree
D4A Cutting edge angle major Pos. A
45 Degree
D6A Wiper edge length Pos. A
2.3 mm
DC Cutting diameter
100 mm
DCCB Counterbore diameter connection bore
45 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
113 mm
Delivery state valid from
4/21/2023
DHUB Hub diameter
78 mm
DIN
FDA03201210
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
10
FamilyProducts
MB45 Lead Angle 45°Milling Cutter
GAMF Rake angle radial
-7 Degree
GAMP Rake angle axial
-12 Degree
HAND Cutting direction
R - Right
ID Technical product number
THN08853
Interface codes
J6 /
ISISO A Indicator for ISO cutting plate Pos.A
0
ISYC Subclass
308-01 - Face milling cutter
KAPR Tool cutting edge angle
45 Degree
LCCB Counterbore depth connection bore
10 mm
LOC-03 CCFMS Connection code form
12
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0320
LOC-03 DCONMS Diameter
32 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA03201210
MILTTY Mill tool type ISO
A - Face milling cutter shoulder cutter peripheral
MTP Clamping type code
S - Screwed across bore with, counter bore
Name Identifying order number
MB45-100R-14T10C-M
OAL Overall length
50 mm
RPMX Rotational speed maximum
8000 1/min
THUB hub thickness
13 mm
Working process
No working processes available
WT Weight of item
1.708 kg
ZEFF Face effective cutting edge count
10
ZEFP Peripheral effective cutting edge count
10
