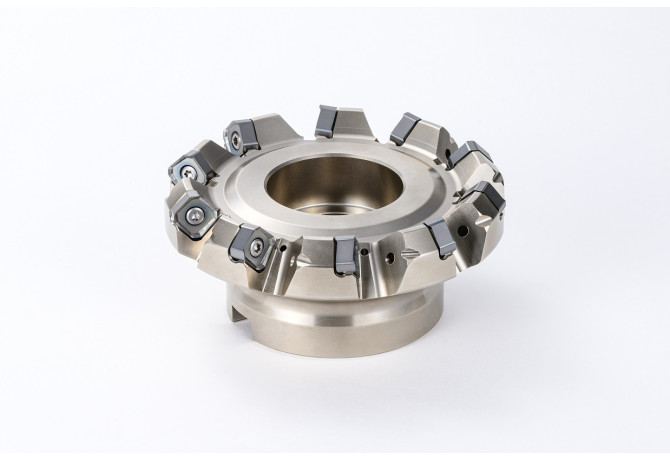

Главная Каталог продукции Toolunited 12 308-01 - Face milling cutter MB45-080R-14T5C-M

MB45-080R-14T5C-M

MB45-080R-14T5C-M MB45-080R-14T5C-M MB45-080R-14T5C-M MB45-080R-14T5C-M

MB45-080R-14T5C-M

Kyocera
Артикул: THN08832
В наличии
В корзину
Описание
Характеристики
A1A Cutting edge angle major Pos. A
90 Degree
A2A Clearance angle major Pos. A
0 Degree
ADJBY Adjustment property
0 - Adjustment not possible
B1A Cutting edge length Pos. A
14.7 mm
B3A Inscribed circle diameter Pos. A
14.7 mm
BD Body diameter
92.5 mm
BLDA Tool style code Position A
2
BMC Body material code
S - Solid steel
C1A Insert thickness Pos. A
6.07 mm
CCONMS Connection count machine side
1
CDX Cutting depth maximum
6 mm
CICT Cutting item count
5
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
KYO - Kyocera
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
D2A Corner chamfer length Pos. A
0.8 mm
D3A Corner chamfer angle Pos. A
22.5 Degree
D4A Cutting edge angle major Pos. A
45 Degree
D6A Wiper edge length Pos. A
2.3 mm
DC Cutting diameter
80 mm
DCCB Counterbore diameter connection bore
20 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
93 mm
Delivery state valid from
4/21/2023
DHUB Hub diameter
70 mm
DIN
FDA02702210
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
5
FamilyProducts
MB45 Lead Angle 45°Milling Cutter
GAMF Rake angle radial
-7 Degree
GAMP Rake angle axial
-12 Degree
HAND Cutting direction
R - Right
ID Technical product number
THN08832
Interface codes
J6 /
ISISO A Indicator for ISO cutting plate Pos.A
0
ISYC Subclass
308-01 - Face milling cutter
KAPR Tool cutting edge angle
45 Degree
LCCB Counterbore depth connection bore
5 mm
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0270
LOC-03 DCONMS Diameter
27 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA02702210
MILTTY Mill tool type ISO
A - Face milling cutter shoulder cutter peripheral
MTP Clamping type code
S - Screwed across bore with, counter bore
Name Identifying order number
MB45-080R-14T5C-M
OAL Overall length
50 mm
RPMX Rotational speed maximum
9000 1/min
THUB hub thickness
11.5 mm
Working process
No working processes available
WT Weight of item
1.411 kg
ZEFF Face effective cutting edge count
5
ZEFP Peripheral effective cutting edge count
5
