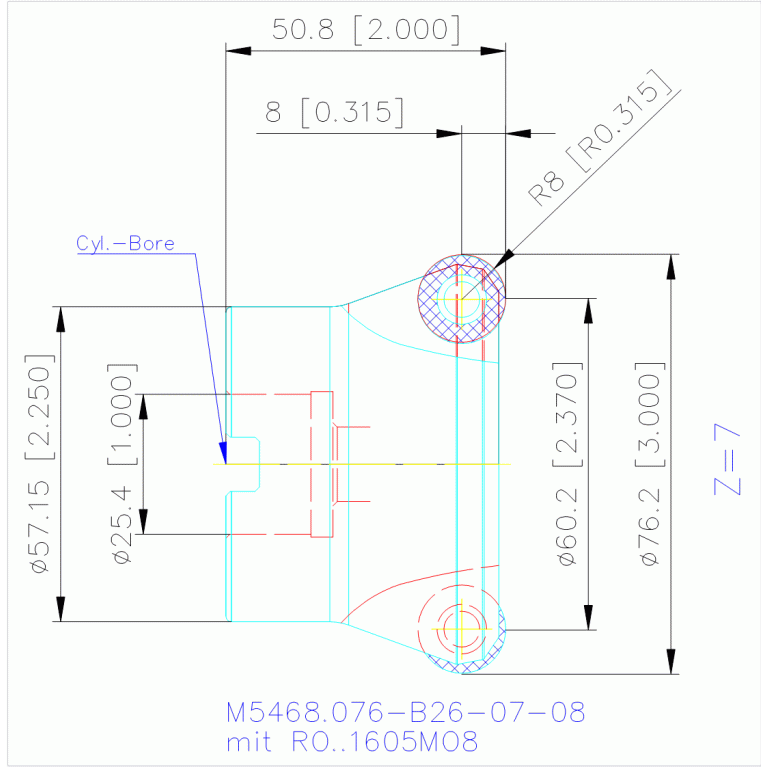

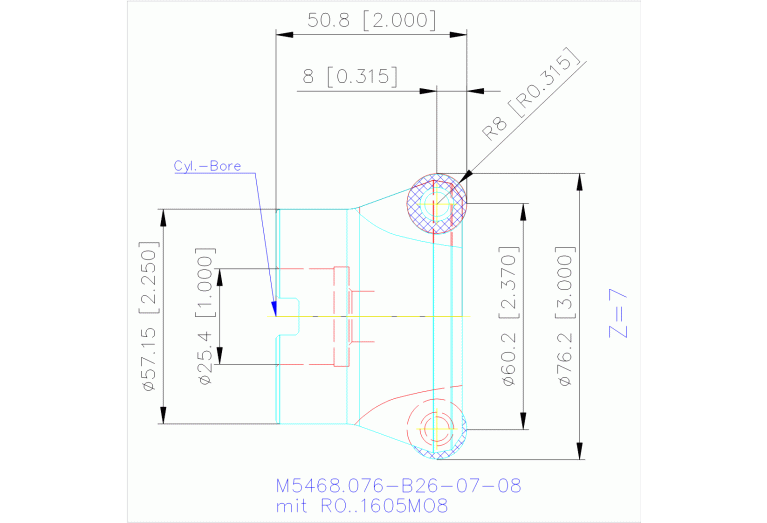

M5468.076-B26-07-08
M5468.076-B26-07-08
Артикул:
7988868
В наличии
Характеристики
ADJBY Adjustment property
0 - Adjustment not possible
AZ Plunge depth maximum
1.25 mm
BD Body diameter
72.6 mm
BLDA Tool style code Position A
10
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
2
CDX Cutting depth maximum
8 mm
CICT Cutting item count
7
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
D1A Corner radius Pos. A
8 mm
DAH Diameter access hole
21 mm
DC Cutting diameter
60.2 mm
DCCB Counterbore diameter connection bore
38.64 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
76.2 mm
Delivery state valid from
12/1/2023
DHUB Hub diameter
57.15 mm
DIN
FDA10001230
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
7
FamilyProducts
Round insert milling cutters M5468
GAMF Rake angle radial
0 Degree
GAMP Rake angle axial
0 Degree
HAND Cutting direction
R - Right
ID Technical product number
7988868
Interface codes
J6 / J61
ISO
FDA12S1000$$$$
ISYC Subclass
308-01 - Face milling cutter
LCCB Counterbore depth connection bore
6.75 mm
LOC-03 CCFMS Form
12
LOC-03 CCSMS Style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Type
FDA Milling arbor mounting
LOC-03 CCUMS Unit base
3 Inch with coolant
LOC-03 CZCMS Size code
1000
LOC-03 DCONMS Diameter
25.4 mm
LOC-03 ISO
FDA12S1000$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA10001230
Name Identifying order number
M5468.076-B26-07-08
OAL Overall length
50.8 mm
RMPX Ramping angle maximum
8.4 Degree
RPMX Rotational speed maximum
18600 1/min
STDLET Standard letter to the standard number
A
STDNO Standard
ISO6462
Working process
FFO - Die milling,FPL - Face milling,FSE - Counter-sinking,FZI - Circular milling
WT Weight of item
0.745 kg
ZEFF Face effective cutting edge count
7
ZEFP Peripheral effective cutting edge count
7
