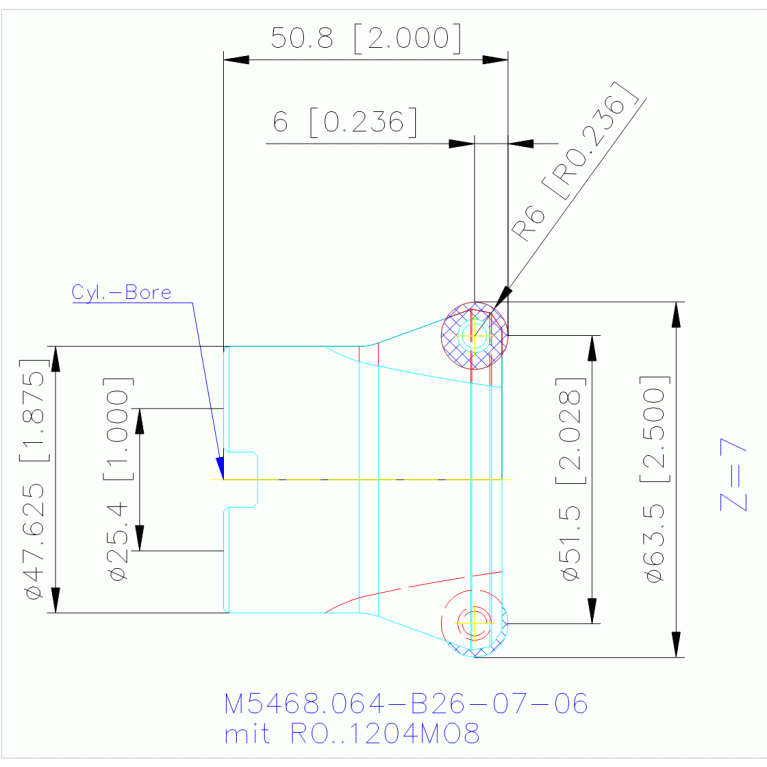

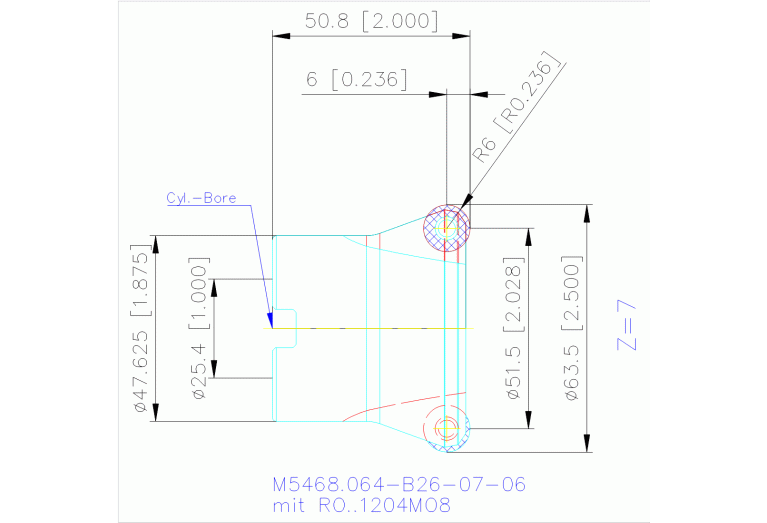

M5468.064-B26-07-06

M5468.064-B26-07-06 M5468.064-B26-07-06 M5468.064-B26-07-06 M5468.064-B26-07-06

M5468.064-B26-07-06

Walter
Артикул: 7988864
В наличии
В корзину
Описание
Характеристики
ADJBY Adjustment property
0 - Adjustment not possible
AZ Plunge depth maximum
1.09 mm
BD Body diameter
60.89 mm
BLDA Tool style code Position A
10
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
2
CDX Cutting depth maximum
6 mm
CICT Cutting item count
7
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
D1A Corner radius Pos. A
6 mm
DAH Diameter access hole
21 mm
DC Cutting diameter
51.5 mm
DCCB Counterbore diameter connection bore
34.83 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
63.5 mm
Delivery state valid from
12/1/2023
DHUB Hub diameter
47.62 mm
DIN
FDA10001230
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
7
FamilyProducts
Round insert milling cutters M5468
GAMF Rake angle radial
0 Degree
GAMP Rake angle axial
0 Degree
HAND Cutting direction
R - Right
ID Technical product number
7988864
Interface codes
J6 / J61
ISO
FDA12S1000$$$$
ISYC Subclass
308-01 - Face milling cutter
LCCB Counterbore depth connection bore
4.91 mm
LOC-03 CCFMS Form
12
LOC-03 CCSMS Style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Type
FDA Milling arbor mounting
LOC-03 CCUMS Unit base
3 Inch with coolant
LOC-03 CZCMS Size code
1000
LOC-03 DCONMS Diameter
25.4 mm
LOC-03 ISO
FDA12S1000$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA10001230
Name Identifying order number
M5468.064-B26-07-06
OAL Overall length
50.8 mm
RMPX Ramping angle maximum
7.1 Degree
RPMX Rotational speed maximum
22400 1/min
STDLET Standard letter to the standard number
A
STDNO Standard
ISO6462
Working process
FFO - Die milling,FPL - Face milling,FSE - Counter-sinking,FZI - Circular milling
WT Weight of item
0.488 kg
ZEFF Face effective cutting edge count
7
ZEFP Peripheral effective cutting edge count
7
