M5468-125-B40-08-08

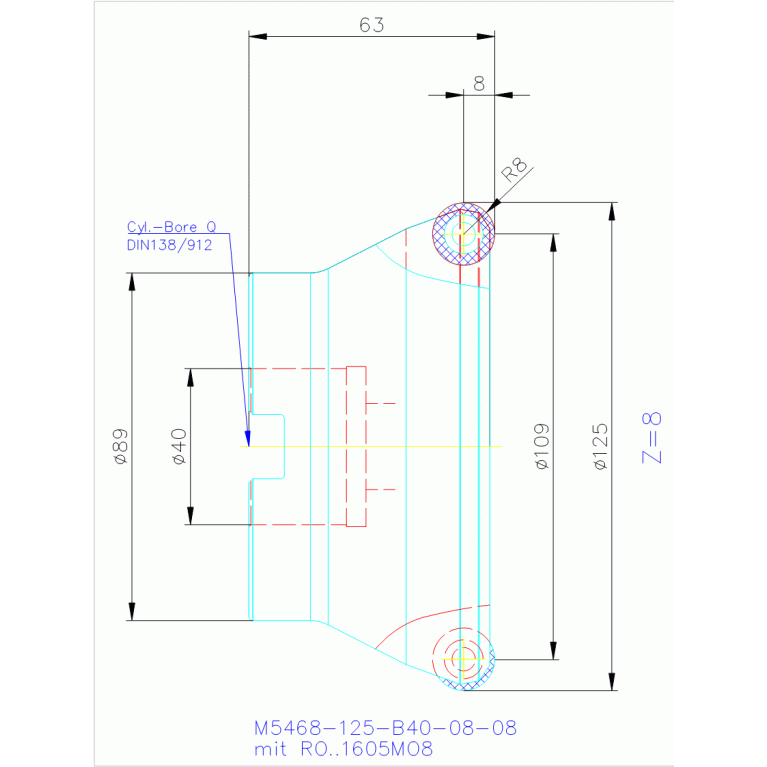

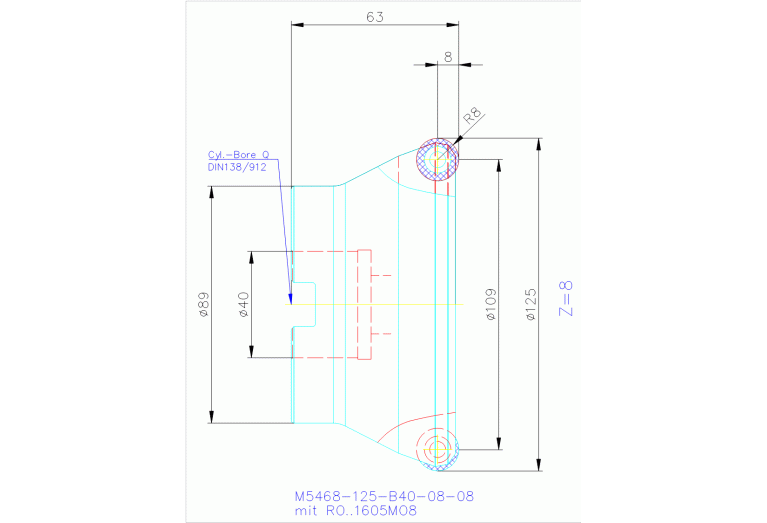

M5468-125-B40-08-08 M5468-125-B40-08-08 M5468-125-B40-08-08 M5468-125-B40-08-08

M5468-125-B40-08-08

Walter
Артикул: 7885144
В наличии
В корзину
Описание
Характеристики
ADJBY Adjustment property
0 - Adjustment not possible
AZ Plunge depth maximum
1.25 mm
BD Body diameter
121.58 mm
BLDA Tool style code Position A
10
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
2
CDX Cutting depth maximum
8 mm
CICT Cutting item count
8
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
D1A Corner radius Pos. A
8 mm
DC Cutting diameter
109 mm
DCCB Counterbore diameter connection bore
87.57 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
125 mm
Delivery state valid from
12/1/2023
DHUB Hub diameter
89 mm
DIN
FDA04001210
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
8
FamilyProducts
Round insert milling cutters M5468
GAMF Rake angle radial
0 Degree
GAMP Rake angle axial
0 Degree
HAND Cutting direction
R - Right
ID Technical product number
7885144
Interface codes
J6 / J61
ISO
FDA12G4000$$$$
ISYC Subclass
308-01 - Face milling cutter
LCCB Counterbore depth connection bore
6.75 mm
LOC-03 CCFMS Form
12
LOC-03 CCSMS Style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Type
FDA Milling arbor mounting
LOC-03 CCUMS Unit base
1 Metric with coolant
LOC-03 CZCMS Size code
0400
LOC-03 DCONMS Diameter
40 mm
LOC-03 ISO
FDA12G4000$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA04001210
Name Identifying order number
M5468-125-B40-08-08
OAL Overall length
63 mm
RMPX Ramping angle maximum
4.3 Degree
RPMX Rotational speed maximum
14500 1/min
STDLET Standard letter to the standard number
A
STDNO Standard
ISO6462
Working process
FFO - Die milling,FPL - Face milling,FSE - Counter-sinking,FZI - Circular milling
WT Weight of item
2.788 kg
ZEFF Face effective cutting edge count
8
ZEFP Peripheral effective cutting edge count
8
