Главная Каталог продукции Toolunited 12 308-01 - Face milling cutter M5004-160-B40-09-04

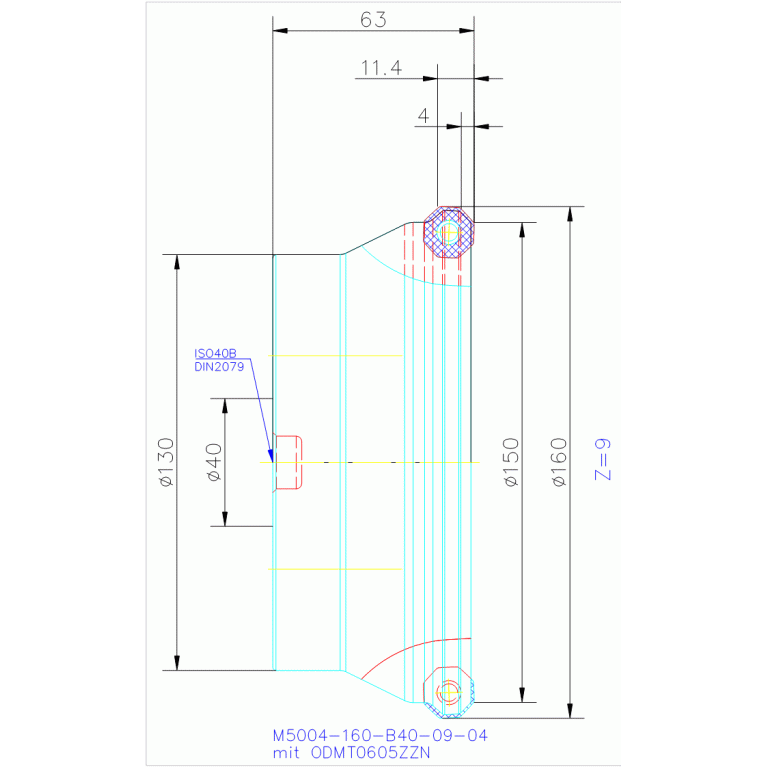

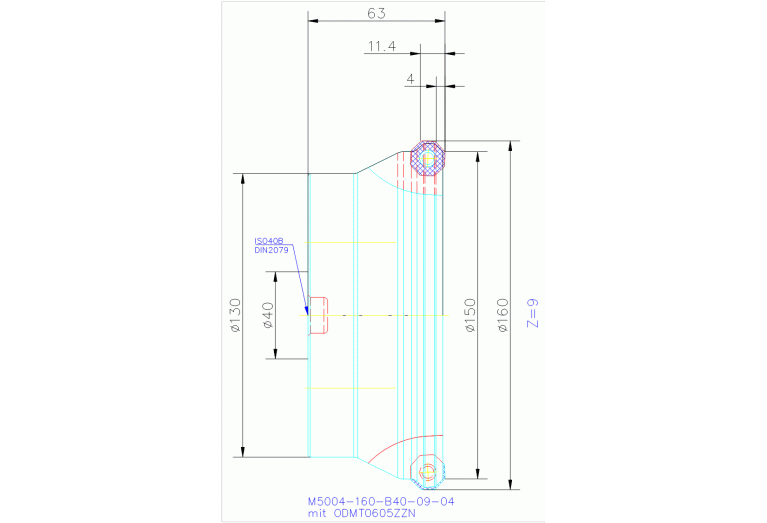

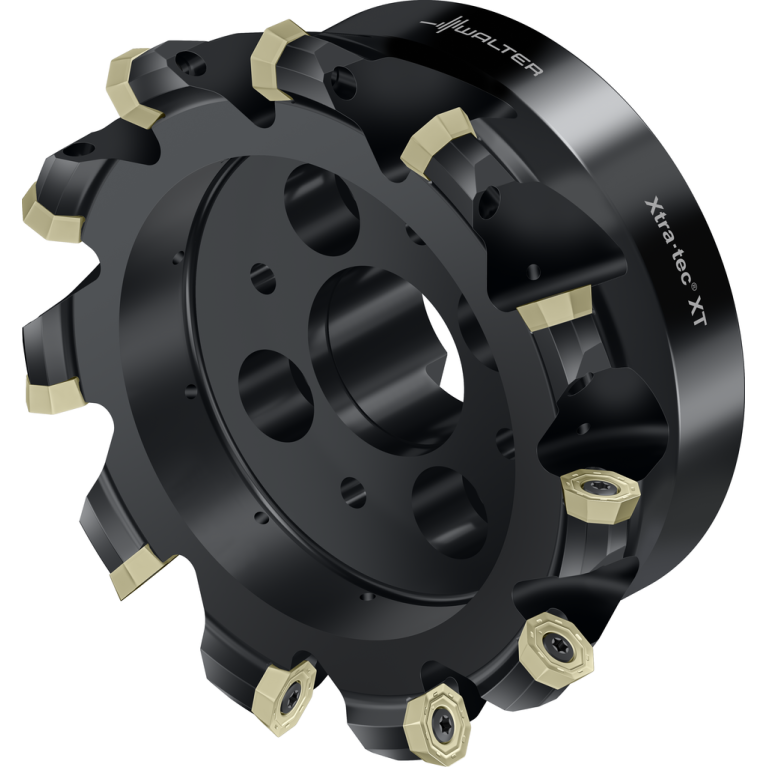

M5004-160-B40-09-04

M5004-160-B40-09-04 M5004-160-B40-09-04 M5004-160-B40-09-04 M5004-160-B40-09-04

M5004-160-B40-09-04

Walter
Артикул: 7923393
В наличии
В корзину
Описание
Характеристики
ADJBY Adjustment property
0 - Adjustment not possible
AZ Plunge depth maximum
1 mm
BD Body diameter
158 mm
BLDA Tool style code Position A
9
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
2
CDX Cutting depth maximum
4 mm
CICT Cutting item count
9
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DC Cutting diameter
150 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
160 mm
Delivery state valid from
12/1/2023
DHUB Hub diameter
130 mm
DIN
SPK04000113
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
9
FamilyProducts
Octagonal face milling cutters M5004
GAMF Rake angle radial
0 Degree
GAMP Rake angle axial
0 Degree
HAND Cutting direction
R - Right
ID Technical product number
7923393
Interface codes
J6 / J61
ISO
SPK01G4000$$$$
ISYC Subclass
308-01 - Face milling cutter
KAPR Tool cutting edge angle
43 Degree
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
3 Hole pattern (through bore) machine side or hole pattern (threaded hole) machine side or
LOC-03 CCTMS Type
SPK Spindle nose mounting
LOC-03 CCUMS Unit base
1 Metric with coolant
LOC-03 CZCMS Size code
0400
LOC-03 DCONMS Diameter
40 mm
LOC-03 ISO
SPK01G4000$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SPK04000113
Name Identifying order number
M5004-160-B40-09-04
OAL Overall length
63 mm
RMPX Ramping angle maximum
1.6 Degree
RPMX Rotational speed maximum
10900 1/min
STDLET Standard letter to the standard number
C
STDNO Standard
ISO6462
Working process
FPL - Face milling,FSE - Counter-sinking,FZI - Circular milling
WT Weight of item
4.233 kg
ZEFF Face effective cutting edge count
9
ZEFP Peripheral effective cutting edge count
9
