Главная Каталог продукции Toolunited 12 308-01 - Face milling cutter M5004-090-B27-07-04

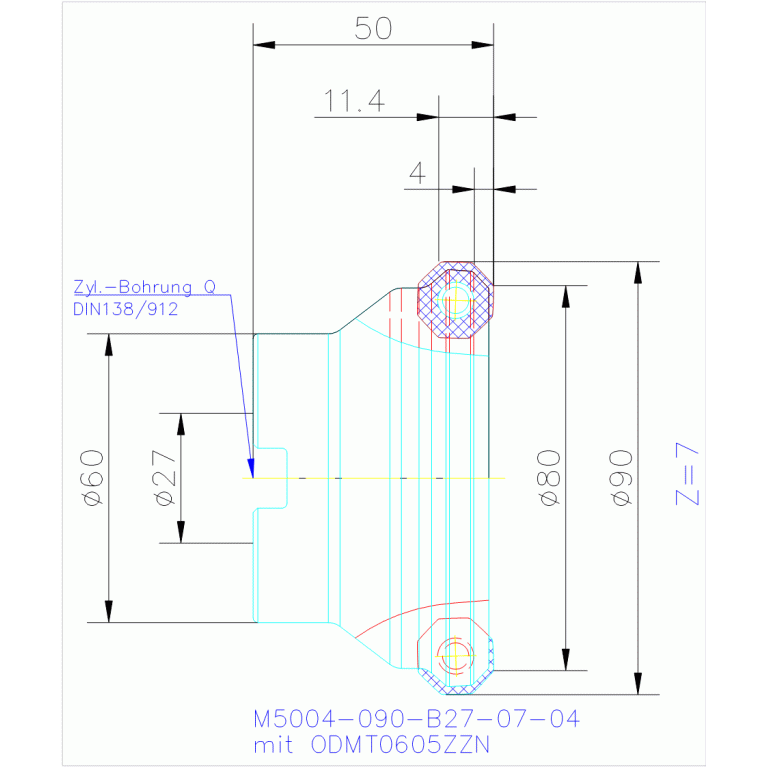

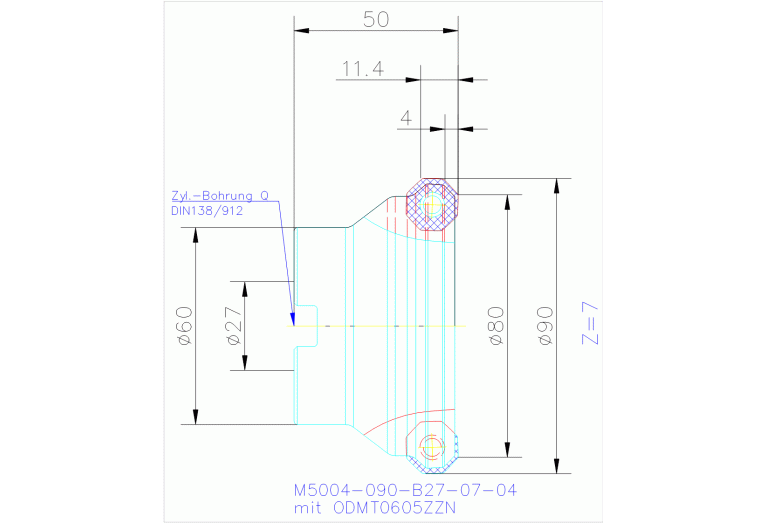

M5004-090-B27-07-04

M5004-090-B27-07-04 M5004-090-B27-07-04 M5004-090-B27-07-04 M5004-090-B27-07-04

M5004-090-B27-07-04

Walter
Артикул: 7923381
В наличии
В корзину
Описание
Характеристики
ADJBY Adjustment property
0 - Adjustment not possible
AZ Plunge depth maximum
1 mm
BD Body diameter
86.53 mm
BLDA Tool style code Position A
9
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
2
CDX Cutting depth maximum
4 mm
CICT Cutting item count
7
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DAH Diameter access hole
20 mm
DC Cutting diameter
80 mm
DCCB Counterbore diameter connection bore
20 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
90 mm
Delivery state valid from
12/1/2023
DHUB Hub diameter
60 mm
DIN
FDA02701210
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
7
FamilyProducts
Octagonal face milling cutters M5004
GAMF Rake angle radial
0 Degree
GAMP Rake angle axial
0 Degree
HAND Cutting direction
R - Right
ID Technical product number
7923381
Interface codes
J6 / J61
ISO
FDA12G2700$$$$
ISYC Subclass
308-01 - Face milling cutter
KAPR Tool cutting edge angle
43 Degree
LCCB Counterbore depth connection bore
19 mm
LOC-03 CCFMS Form
12
LOC-03 CCSMS Style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Type
FDA Milling arbor mounting
LOC-03 CCUMS Unit base
1 Metric with coolant
LOC-03 CZCMS Size code
0270
LOC-03 DCONMS Diameter
27 mm
LOC-03 ISO
FDA12G2700$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA02701210
Name Identifying order number
M5004-090-B27-07-04
OAL Overall length
50 mm
RMPX Ramping angle maximum
3.6 Degree
RPMX Rotational speed maximum
14400 1/min
STDLET Standard letter to the standard number
A
STDNO Standard
ISO6462
Working process
FPL - Face milling,FSE - Counter-sinking,FZI - Circular milling
WT Weight of item
0.988 kg
ZEFF Face effective cutting edge count
7
ZEFP Peripheral effective cutting edge count
7
