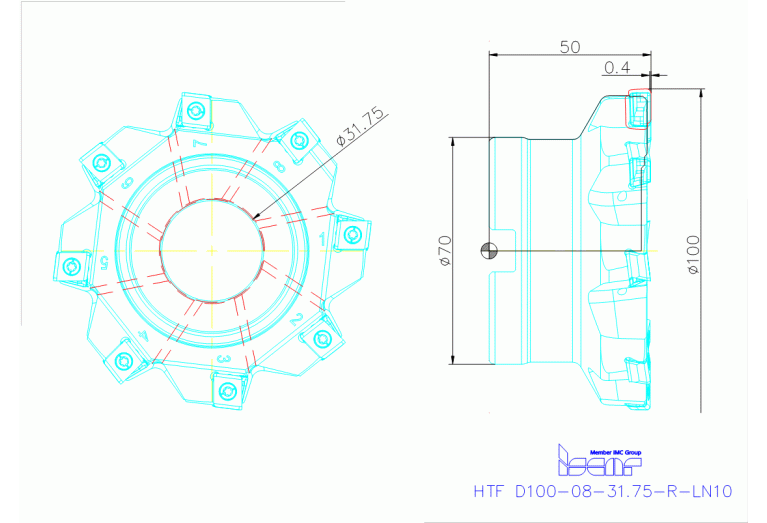

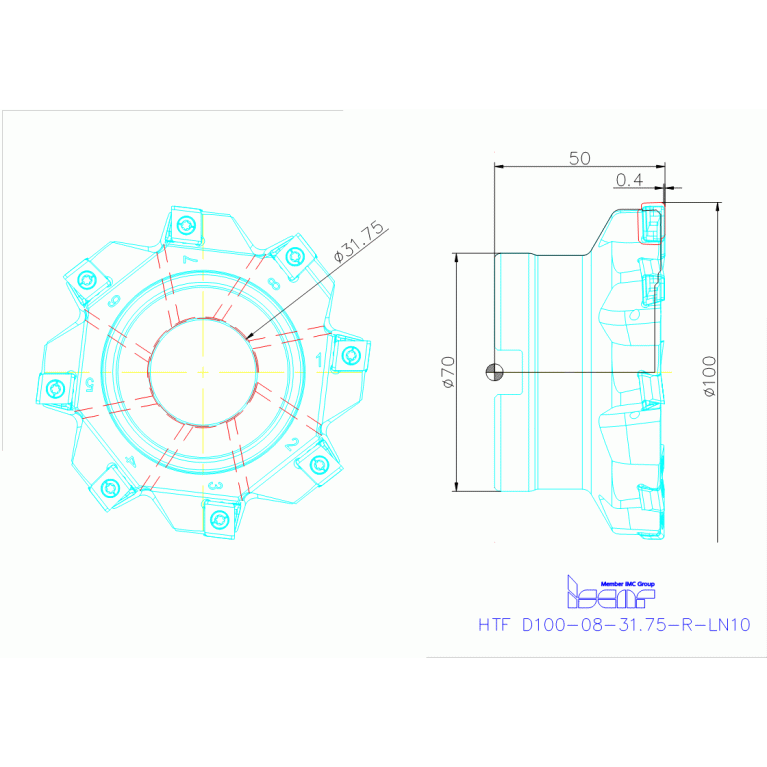

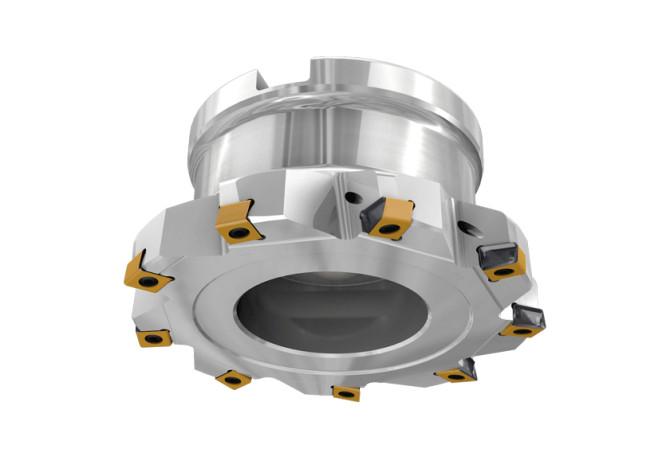

HTF D100-08-31.75-R-LN10

Артикул: 3388348

В наличии

В корзину

Описание

Характеристики

CCONMS Connection count machine side

CICT Cutting item count

COMPC Company code

IS - Iscar

DC Cutting diameter

100 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DHUB Hub diameter

70 mm

DIN

FDA1250220

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

Face Mills Carrying Tangentially Clamped Inserts with 4 Cutting Edges for Extra Fine Milling Applications

HAND Cutting direction

R - Right

ID Technical product number

3388348

Interface codes

J6 /

ISYC Subclass

308-01 - Face milling cutter

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

0 Hole in machine direction or shaft in workpiece direction

LOC-03 CCTMS Connection code type

FDA Milling arbor mounting

LOC-03 CZCMS Connection size code

1250

LOC-03 DCONMS Diameter

31.75 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA1250220

Name Identifying order number

HTF D100-08-31.75-R-LN10

OAL Overall length

50 mm

Working process

No working processes available

ZEFP Peripheral effective cutting edge count
