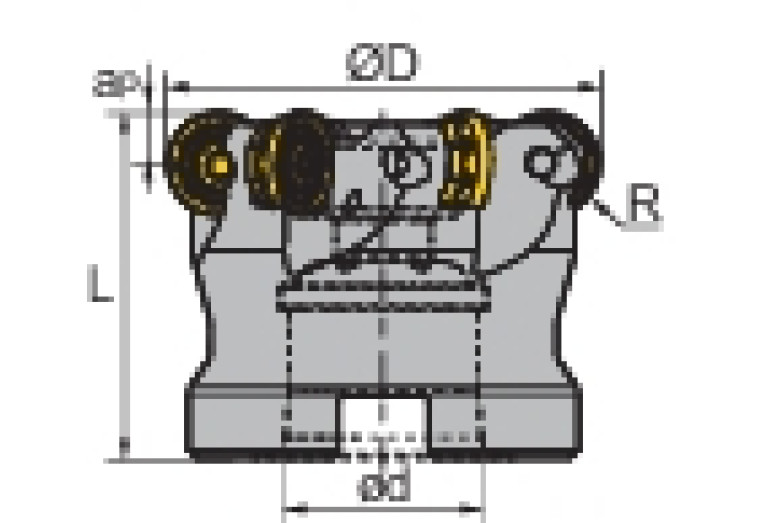

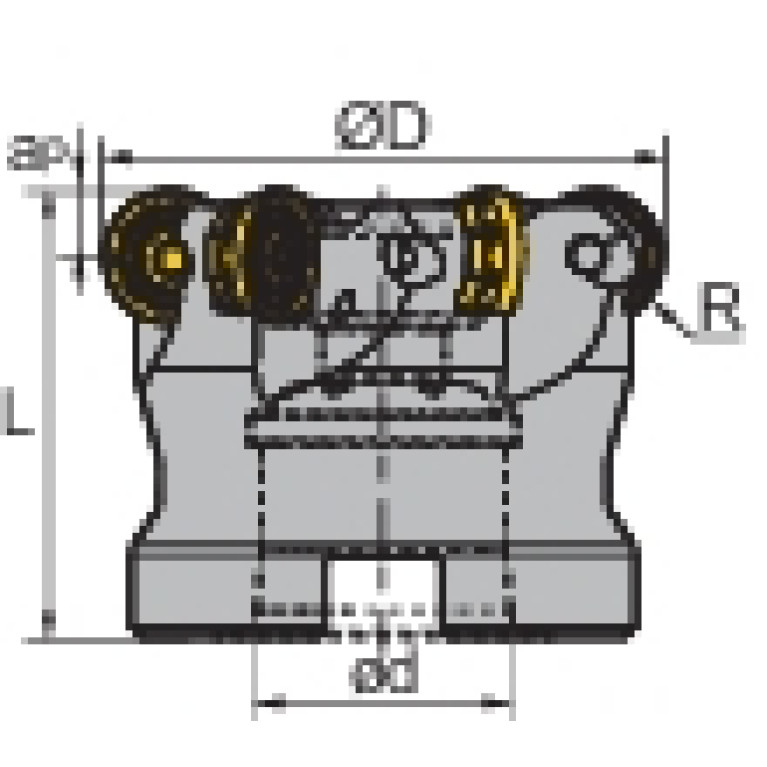

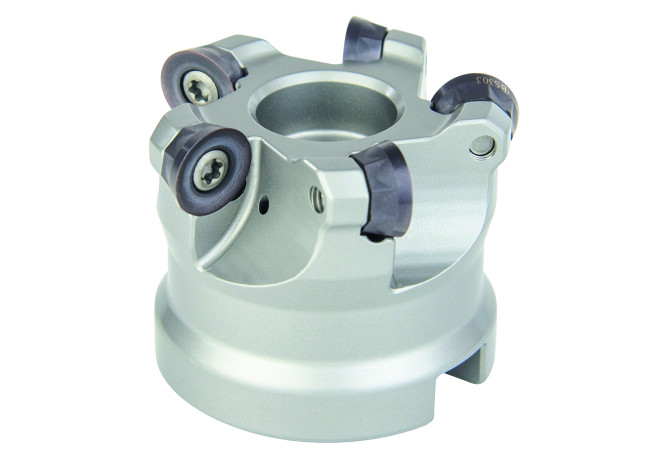

Главная Каталог продукции Toolunited 12 308-01 - Face milling cutter FMR11-066-A27-RD12-07C

FMR11-066-A27-RD12-07C

Артикул: FMR11-066-A27-RD12-07C

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

15 Degree

B3A Inscribed circle diameter Pos. A

12 mm

BLDA Tool style code Position A

C1A Insert thickness Pos. A

4.76 mm

CCONMS Connection count machine side

CDX Cutting depth maximum

6 mm

CICT Cutting item count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

ZCC - ZCC Cutting Tools

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DC Cutting diameter

54 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

66 mm

Delivery state valid from

8/1/2024

DIN

FDA02702210

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

Face mill

HAND Cutting direction

R - Right

ID Identifying order number

FMR11-066-A27-RD12-07C

Interface codes

J6 / J61

ISISO A Indicator for ISO cutting plate Pos.A

ISYC Subclass

308-01 - Face milling cutter

LOC-03 CCFMS Form

LOC-03 CCSMS Style

0 Hole in machine direction or shaft in workpiece direction

LOC-03 CCTMS Type

FDA Milling arbor mounting

LOC-03 CCUMS Unit base

1 Metric with coolant

LOC-03 CZCMS Size code

0270

LOC-03 DCONMS Diameter

27 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA02702210

OAL Overall length

40 mm

Working process

FDR - Rotary milling, turn milling,FEC - Square shoulder milling,FFO - Die milling,FPL - Face milling,FPR - Profile milling,FRU - Round moulding,FSE - Counter-sinking,FZI - Circular milling

WT Weight of item

0.405 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
