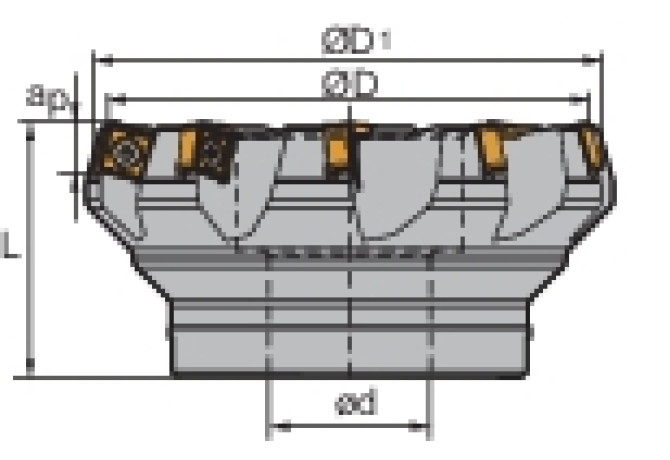

Главная Каталог продукции Toolunited 12 308-01 - Face milling cutter FME17-125-B40-SN12-14

FME17-125-B40-SN12-14

FME17-125-B40-SN12-14 FME17-125-B40-SN12-14

FME17-125-B40-SN12-14

ZCC Cutting Tools
Артикул: FME17-125-B40-SN12-14
В наличии
В корзину
Описание
Характеристики
A1A Cutting edge angle major Pos. A
90 Degree
A2A Clearance angle major Pos. A
0 Degree
B1A Cutting edge length Pos. A
12.7 mm
B3A Inscribed circle diameter Pos. A
12.7 mm
BLDA Tool style code Position A
2
C1A Insert thickness Pos. A
6.5 mm
CCONMS Connection count machine side
1
CDX Cutting depth maximum
8 mm
CICT Cutting item count
14
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
ZCC - ZCC Cutting Tools
CXSC Coolant exit style code
0 - Without coolant exit
D1A Corner radius Pos. A
0.8 mm
DC Cutting diameter
125 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
170 mm
Delivery state valid from
8/1/2024
DIN
FDA04001200
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
14
FamilyProducts
Face mill
HAND Cutting direction
R - Right
ID Identifying order number
FME17-125-B40-SN12-14
Interface codes
J6 /
ISISO A Indicator for ISO cutting plate Pos.A
0
ISYC Subclass
308-01 - Face milling cutter
KAPR Tool cutting edge angle
75 Degree
LOC-03 CCFMS Form
12
LOC-03 CCSMS Style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Type
FDA Milling arbor mounting
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
0400
LOC-03 DCONMS Diameter
40 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA04001200
OAL Overall length
63 mm
Working process
FDR - Rotary milling, turn milling,FPL - Face milling,FRU - Round moulding
WT Weight of item
3.145 kg
ZEFF Face effective cutting edge count
14
ZEFP Peripheral effective cutting edge count
14
